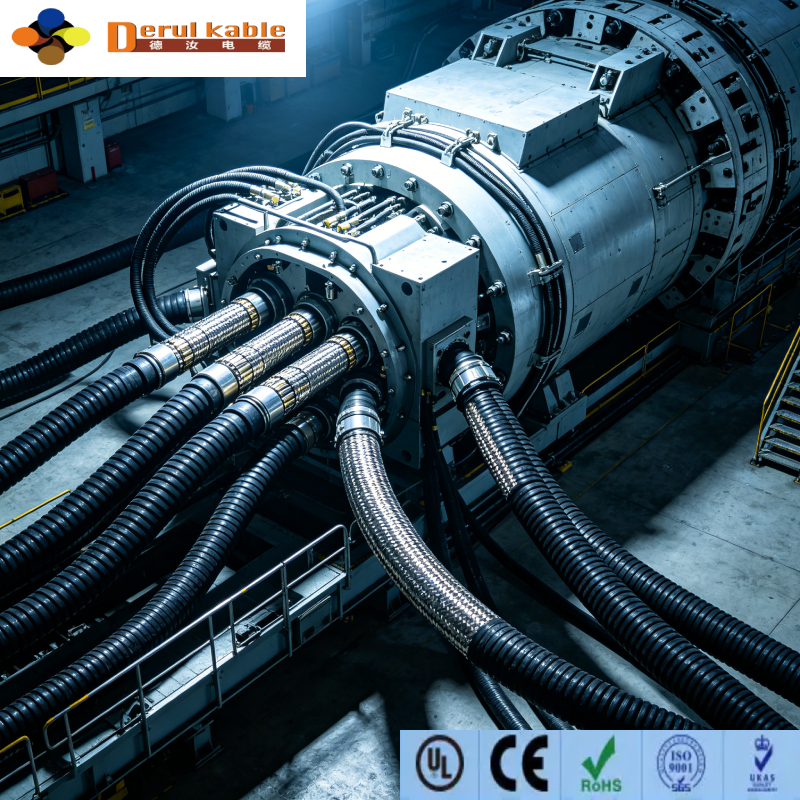

Shield Machine Reel Cable
Shield Machine Reel Cable -TBM Tunnel Boring Trailing Power Cable
Specification
| Basic Structure | Conductor+Insulation+Jacket+Hose |
| Conductor | Plain Copper/ Tinned Copper |
| Insulation | PE |
| Braid | Kevlar/ Plain Copper/ Tinned Copper |
| Jacket | PUR/TPE/PCP |
INTRODUCTION
Shield Machine Reel Cable – Heavy Flexible Trailing Power Cable for TBM Tunnel Boring Machine。
Product Introduction

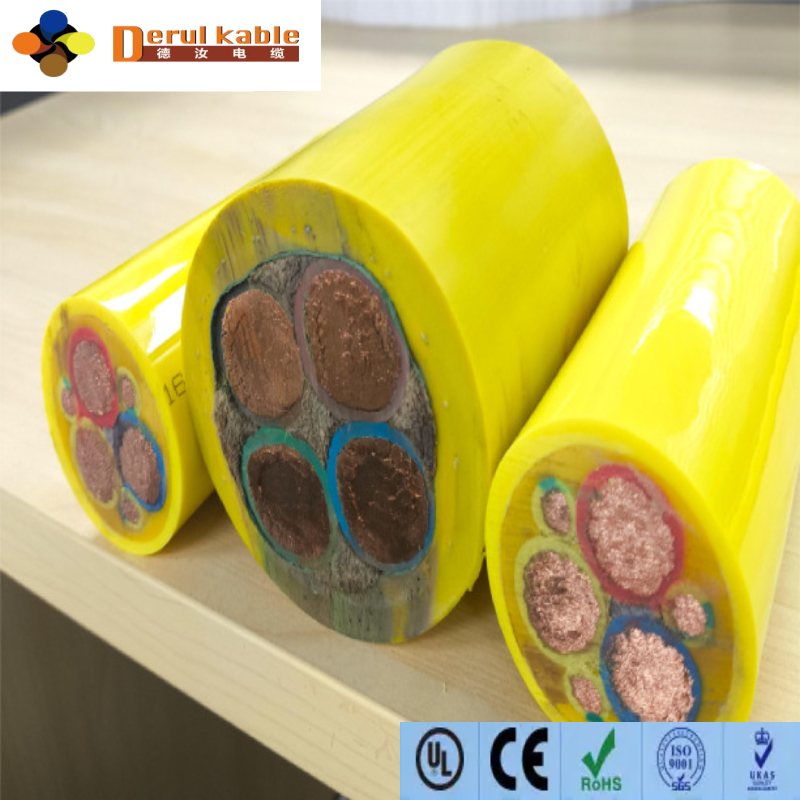

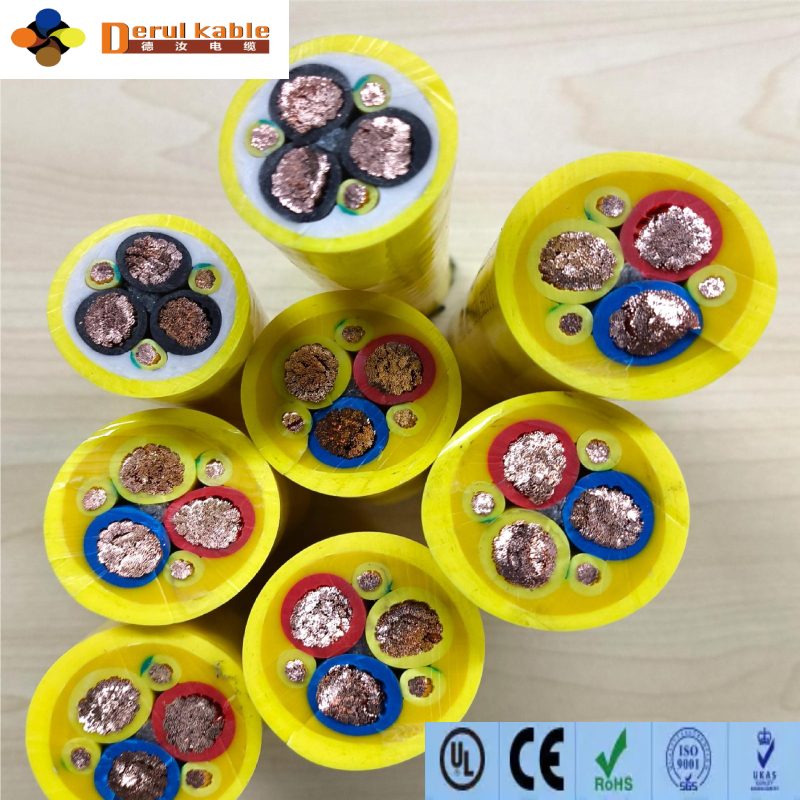

Shield machine reel cable is a dedicated retractable power cable matched with tunnel boring machines (TBM). It is wound on the cable reel drum of the shield equipment, continuously undergoing frequent winding, unwinding, dragging, bending and torsion during long-time tunneling construction.
Conventional ordinary rubber cables easily suffer broken conductors, sheath cracking and short-circuit faults under reciprocating reel operation. Our TBM reel cable adopts reinforced anti-torsion layered structure, specially optimized for muddy, wet, gritty, oily harsh underground tunnel environments, stably supplying power for main drive, hydraulic system, walking and auxiliary units of full-face shield machines, EPB shield and slurry shield equipment.
Internal Structural Configuration
2.1 Conductor
Extra-fine tinnedcopper wire stranding conductor, ultra-high flexibility, low resistance, stable power transmission under repeated bending and twisting cycles.
High-performance EPR rubber insulation, heat resistant, standard voltage grades 0.6/1kV, 1.8/3kV, complying with IEC industrial cable standards.
Specially wrapped cross torsion-resistant cushion layer, effectively offset twisting force when the cable reels back and forth, preventing core distortion and wire fracture.
Premium CR chloroprene or PUR polyurethane sheath as options. Outstanding abrasion resistance, mud resistance, oil resistance, water and weak acid alkali corrosion resistance; tear-proof against gravel and sharp rock debris inside tunnels.
Main Technical Parameters
| Performance Item | Standard Specification |
|---|---|
| Rated Voltage | 0.6/1kV, 1.8/3kV customizable |
| Continuous Working Temp | -40℃ ~ +90℃ |
| Minimum Bending Radius | 6× cable outer diameter (dynamic reel state) |
| Torsion Endurance | ±360° cyclic torsion without conductor breakage |
| Environmental Resistance | Mud, water, hydraulic oil, gravel, weak corrosive slurry |
| Flame Retardancy | Optional FR flame retardant grade |
| Service Life | 2–3 times longer than ordinary general rubber cable |
We provide OEM and ODM service for shield machine reel cables. Send us your TBM model, motor power, required cable size, tunnel geological conditions and working voltage. Our engineering team will design a matching cable scheme and send formal quotation and technical drawings within 24 working hours.
A1: It is the special retractable power cable coiled on TBM’s cable drum, delivering power for the whole tunneling machine’s driving, hydraulic and operation control systems during advance construction.
A2: The cable stretches and rewinds repeatedly as the shield moves forward. Ordinary cables twist internally, causing copper wire break and unexpected construction shutdown. Our reinforced torsion structure greatly lowers breakdown risk. Q3: Can this cable work in muddy, oily tunnel conditions?
A3: Yes. CR and PUR outer sheaths feature excellent oil and mud resistance, no swelling, cracking or aging when immersed in tunnel slurry and hydraulic oil.
