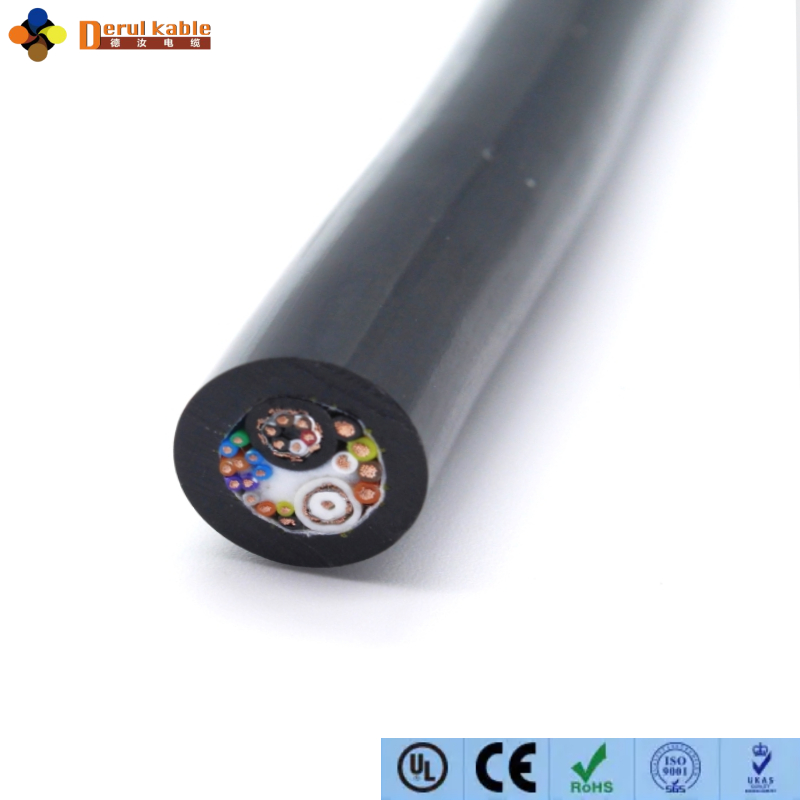

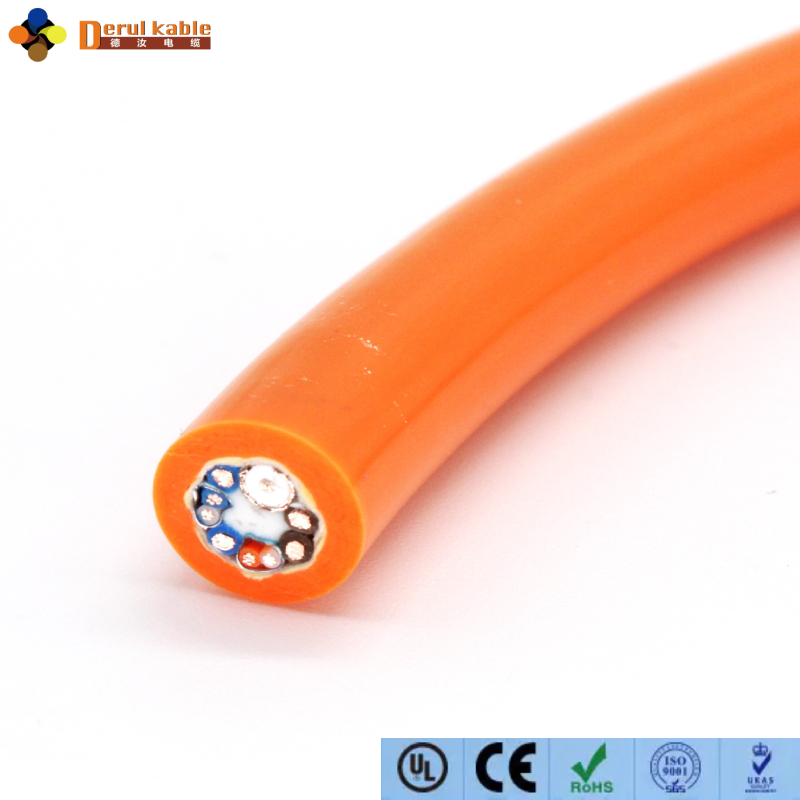

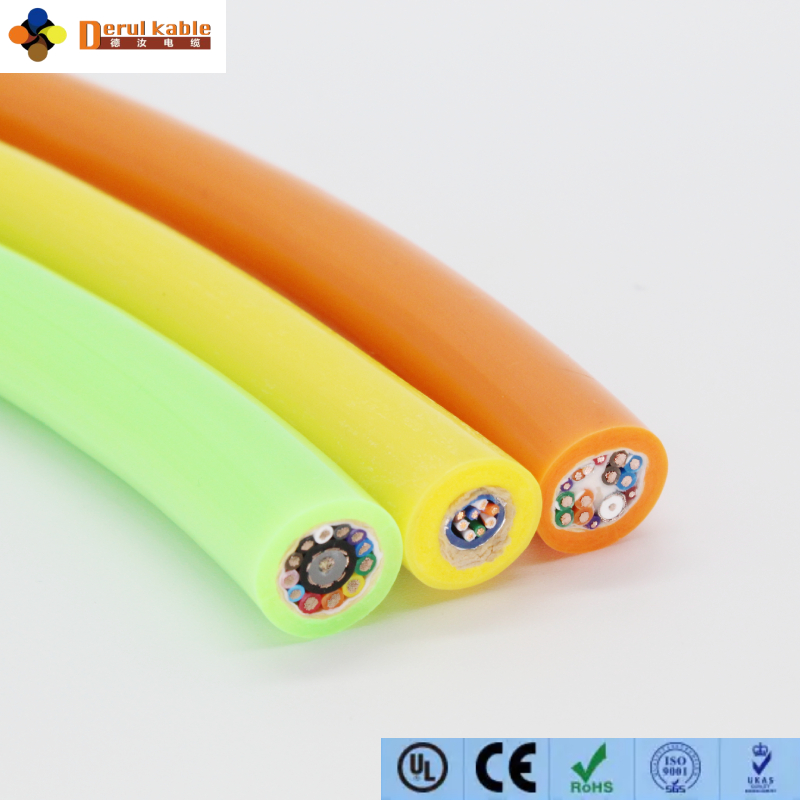

Pipe Robot Cable
Waterproof Abrasion Resistant Integrated Pipeline Robot Control Cable
Specification
| Basic Structure | Conductor+Insulation+Jacket+Hose |
| Conductor | Plain Copper/ Tinned Copper |
| Insulation | PE |
| Braid | Kevlar/ Plain Copper/ Tinned Copper |
| Jacket | PUR/TPE/PCP |
INTRODUCTION
Pipeline robot cable is a special composite towing cable designed for sewer, drainage, underground pipeline inspection crawler robots. Unlike ordinary automation cables, it needs to bear huge traction force, friction against pipe walls, sewage corrosion, water immersion and extrusion from sediment. Most models integrate power supply, control signal, data communication and coaxial video lines into one single cable, realizing one-line dragging for pipeline inspection robots.
We produce full series pipeline robot cables with tensile aramid fiber reinforcement, waterproof PUR/TPE outer sheath, customizable core layout, tensile strength and length, suitable for short-range manhole robots and long-distance deep underground pipeline survey equipment.
Special Internal Structure For Pipeline Towing Working Condition
Power cores: Class6 ultra-fine tinned copper, flexible & anti-fatigue for repeated dragging bending
Control signal cores: Shielded twisted pair, anti-interference stable data transmission
Coaxial video core: Low-loss coaxial line for real-time high-definition pipe image feedback
Tensile reinforcement layer: High-strength aramid fiber wrapped around cable inner core, bears all towing pulling force
Separator wrapping tape: Buffer extrusion and friction from pipe gravel
Outer jacket: Thickened high toughness PUR / waterproof TPE, resistant to sewage, mud, oil, abrasion and hydrolysis
Main Product Types
H3: Short Distance Sewer Robot Cable — 50–100m, light tensile, small compact crawler robots
H3: Long Distance Deep Pipeline Towing Cable — 200–500m, super aramid tensile reinforcement
H3: Explosion-Proof Pipeline Robot Cable — For gas, oil pipeline inspection hazardous environments
H3: Ultra Flexible Mini Pipeline Robot Cable — Tiny bore micro inspection crawlers
Wide Application Scenarios

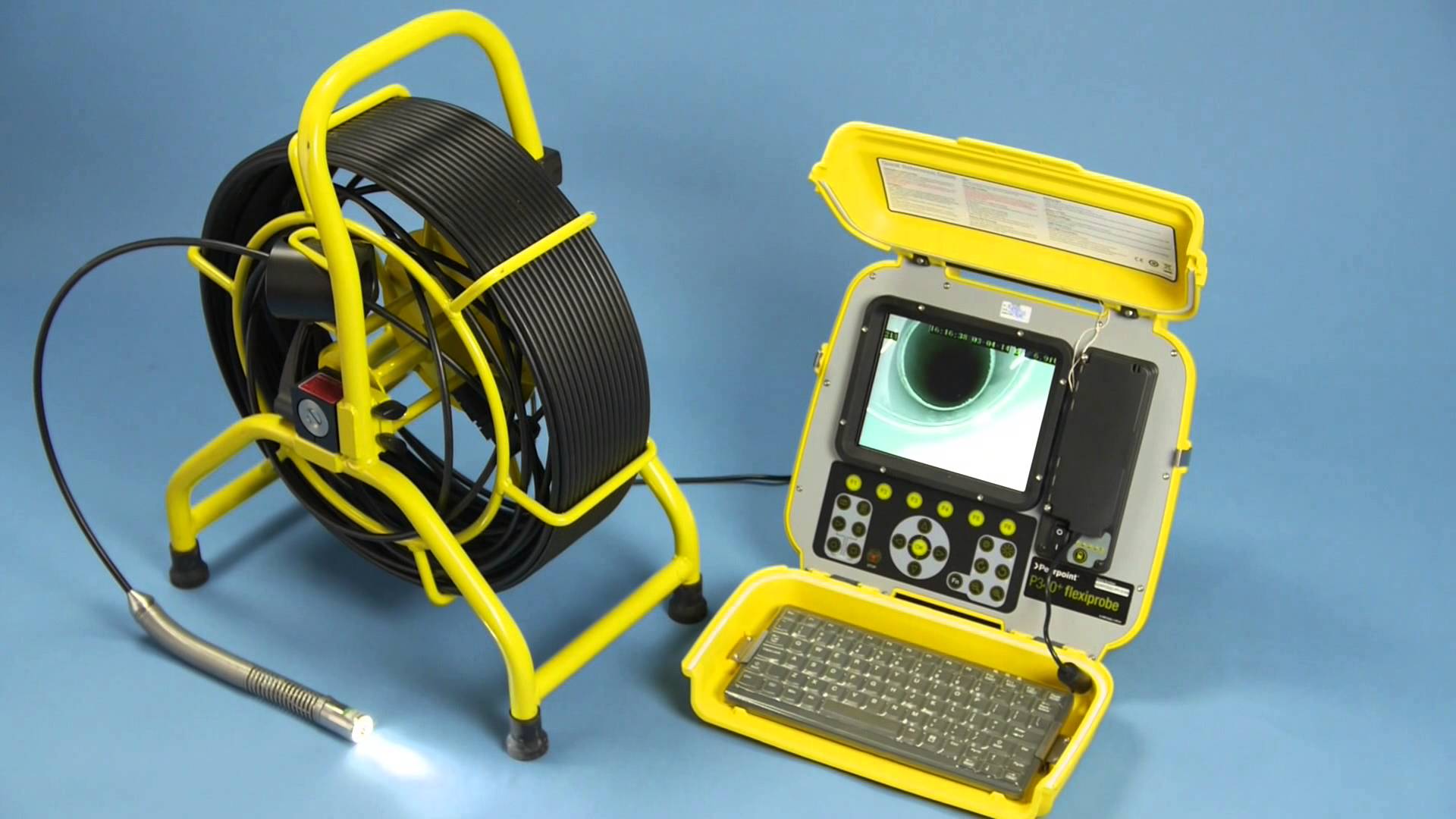

Urban sewer drainage inspection, underground water supply pipeline survey, oil & gas pipeline detection, industrial chemical pipeline crawler robots, manhole CCTV inspection equipment, tunnel drainage pipe maintenance robot, municipal engineering pipeline renovation projects.
Certifications & Factory E-E-A-T Credibility
All pipeline robot cables pass strict tensile pull test, abrasion cycle test, water soaking aging test and electrical stability test. Products carry CE, RoHS, REACH, ISO9001 factory certification. We supply technical datasheets, third-party test reports, free sample testing before bulk orders for municipal engineering, robot equipment manufacturers worldwide.
General Technical Parameter Table
| Specification Item | Standard Parameter |
|---|---|
| Rated Voltage | 300/500V |
| Tensile Load Range | 500N ~ 5000N customizable |
| Working Temperature | -35℃ ~ +90℃ |
| Jacket Material | PUR (Standard) / TPE / LSZH optional |
| Support Towing Length | 50m ~ 500m custom cut |
| Transmission Layout | Power + Twisted Signal Pairs + Coaxial Video |
Q1: Why pipeline robot cable add aramid fiber tensile layer?
A1: The cable bears full pulling weight of the crawler robot during long pipe dragging; aramid fiber takes all traction stress to prevent conductor core snapping under heavy pull.
Q2: Can this cable stay submerged in sewage for months continuously?
A2: Yes, thickened PUR/TPE waterproof jacket resists sewage, sludge and mild chemical liquid, stable long-term underwater operation.
Q3: Can we customize inner core combination (power/signal/video quantity)?
A3: Fully customizable, we adjust core count, coaxial size and tensile strength according to your robot machine design parameters.
About Us
Derul anti-twist bus cable for wind power nacelle
ADVANTAGES
Ultra high tensile resistance: Support 500N–5000N customized pulling load for 50–500m long-distance towing
Excellent abrasion & crush resistance: Thickened outer sheath resists scraping on concrete, metal, gravel pipe inner walls
Full waterproof & sewage corrosion resistant: Long-term immersion in sewage, alkaline drainage liquid no swelling or cracking
Composite integrated layout: Power+signal+video combined, simplify robot wiring layout
Wide temperature adaptability: -35℃ ~ +90℃ stable operation
Low bending fatigue: Thousands of reciprocating drag cycles without core breakage
CUSTOMIZATION CAPABILITY
We are your reliable partner in special cable customization
Considering different working conditions and clients' request, Derul's cable product can be highly customized.
To best meet the demands in our clients' practical application, we can offer highly customized solution and quality cable product, to ensure the cable is suitable for our clients.
We welcome new clients to send us specific requirement. Our teams will evaluate it and offer unique technical datasheet and technical drawings to you.
Our competitive price which most clients could afford will be another key to our successful and efficient cooperation.
As the original manufacturer, we provide quick response to any of our clients' inquiry. We have close interconnection between the workshop, engineer and sales person.
