Robot cable: The "flexible nerve" that endows intelligent machinery with life

In the wave of intelligent manufacturing, every precise grasp by a robotic arm and every smooth rotation of its complex joints are inseparable from a core component hidden deep within - the robot cable. It is far from being an ordinary power transmission wire, but a specialized cable designed specifically for multi-joint manipulators and multi-degree-of-freedom devices. These cables are deeply embedded within the three-dimensional motion space of the robot, constantly enduring high-intensity twisting, bending, and stretching tests, and can be called the "lifeline" of the entire automation system.

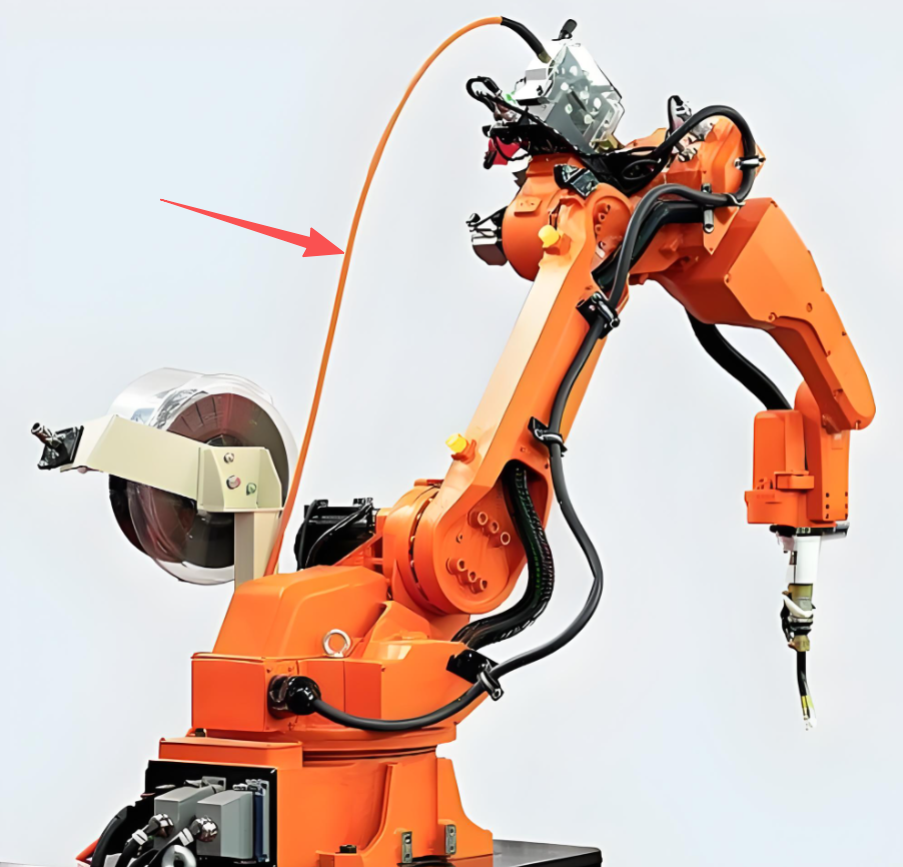

1. Multi-dimensional classification and stringent structural characteristics: Based on different layouts and functional requirements in robot systems, robot cables are primarily divided into three categories: body cables for internal connections within the joints of the robot body, floor-dragging (drag chain) cables for reciprocating linear motion, and internal connecting wires responsible for command interaction between the control cabinet and the teaching pendant. This fine classification ensures optimal electrical and mechanical performance matching under different motion modes.

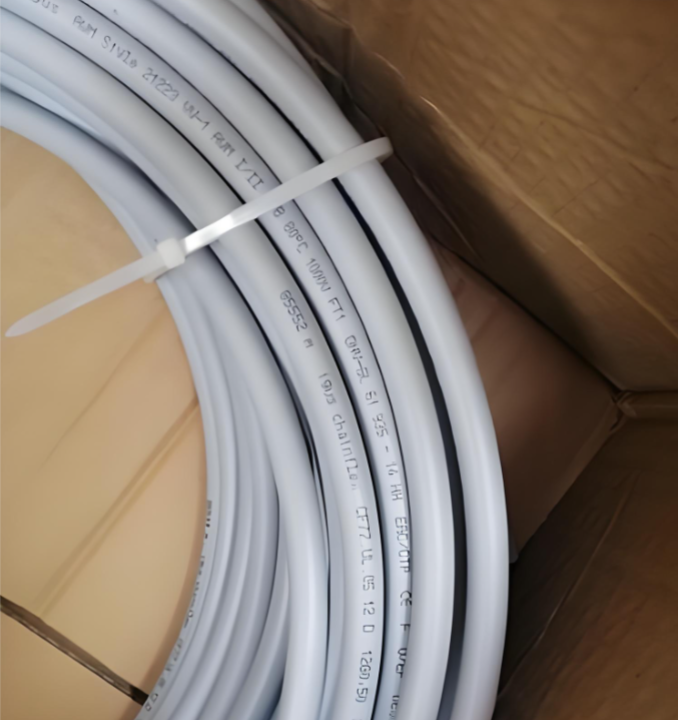

To withstand harsh working conditions, robot cables have undergone extreme optimization in terms of materials and structure. Their conductors are typically made of extremely thin strands of fine copper wire twisted together, supplemented with high tensile materials to significantly enhance flexibility; the insulation layer widely uses high-elasticity special materials such as polyurethane (PUR) and cross-linked polyolefin, which not only provide excellent electrical insulation but also impart strong anti-slip and wear resistance to the cable. In addition, the precise dual-layer flexible braided shield design effectively isolates external electromagnetic interference, ensuring absolute stability in signal transmission. It is worth mentioning that these cables exhibit amazing environmental adaptability, maintaining stable physicochemical properties in extreme cold or high temperatures, as well as in chemical environments filled with oil, acid, and alkali corrosion. Even under the combined effects of long-term torsion and bending stress, their special structural design can delay material fatigue and significantly extend service life.

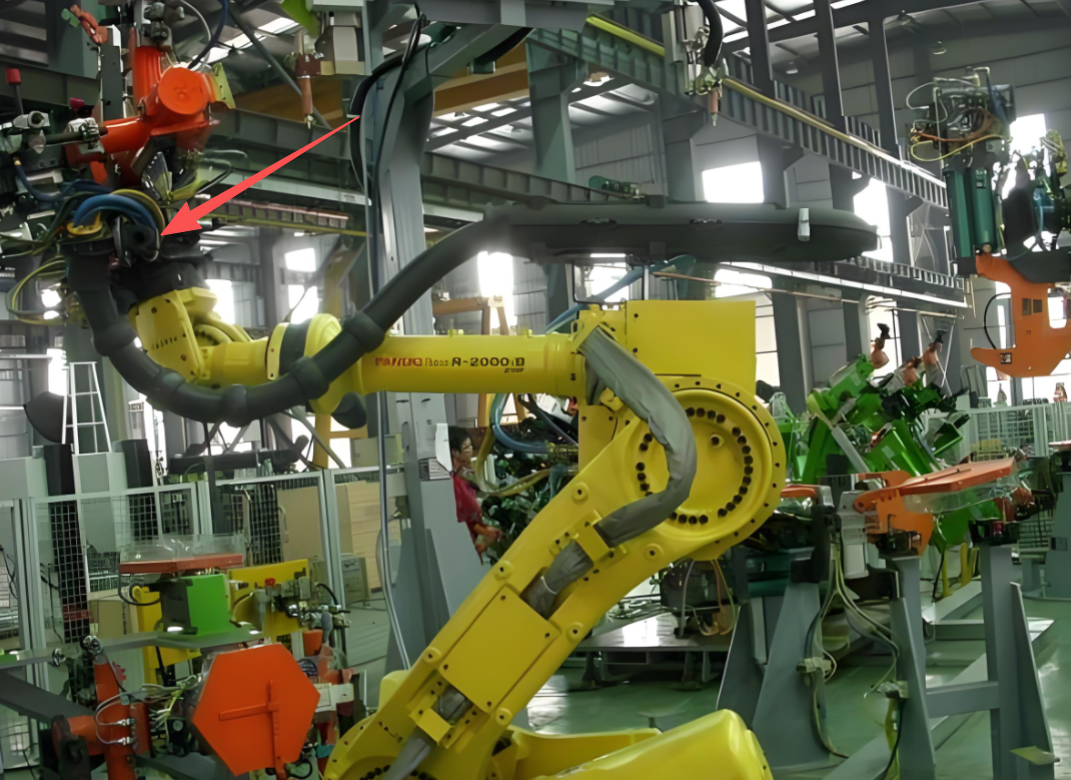

II. Wide Application Fields and Core Advantages As a composite carrier of power and control information, robot power cables are widely used in various industrial robotic arms, automated production lines, assembly lines, and even high-end CNC machine tools. They not only undertake the task of delivering high-power electricity to servo motors and drives, but also fulfill the responsibility of high-speed transmission of encoder feedback, process data, and control instructions. They serve as the underlying cornerstone for achieving intelligent and efficient operation of robots.

Compared to traditional ordinary cables, robotic cables exhibit unparalleled core advantages. Firstly, they possess extreme durability and longevity, with the ability to withstand over ten million bending cycles, high-speed movement of tens of meters per second, and extreme torsion of ±180°, greatly reducing unplanned downtime maintenance costs for equipment. Secondly, they exhibit strong anti-interference and high safety, with strict international standard certifications (such as 2PFG 257 7) ensuring communication safety and operational reliability in complex electromagnetic environments. Lastly, they demonstrate wide applicability across various scenarios, from traditional automotive manufacturing workshops to emerging bionic joints for humanoid robots, and even extreme special operation environments such as deep-sea exploration, where high-performance robotic cables can provide solid support.

III. Industry Outlook: Key Bottlenecks in the Era of Mass Production With the explosive growth of the humanoid robot industry, the market has placed more stringent demands on cable technology. In the complex bionic movements of humanoid robots with over 60 degrees of freedom, cables must not only meet the high flexibility requirements of "all-around movement", but also take into account lightweight and small size to achieve real-time low-latency transmission of massive sensor data. Although cables account for a small proportion of the overall BOM cost, their failure can easily lead to system breakdown, making them a critical shortcoming that determines the success and long-term reliability of robot commercialization. Currently, the implementation of the world's first "Humanoid Robot Cable Group Standard" is driving the industry to move away from low-price imitation and towards building technical barriers centered on dynamic fatigue life testing and wide temperature range performance verification. Choosing a high-quality robot cable that meets cutting-edge standards is not only a necessary measure to ensure stable equipment operation, but also a strategic choice for enterprises to win dual advantages of efficiency and quality in the intelligent manufacturing race.
