Industrial Robot Cable
Siemens Compatible Servo Power Cable-6FX8008 PUR Drag Chain Wire
Specification
| Basic Structure | Conductor+Insulation+Jacket+Hose |
| Conductor | Plain Copper/ Tinned Copper |
| Insulation | PE |
| Braid | Kevlar/ Plain Copper/ Tinned Copper |
| Jacket | PUR/TPE/PCP |
INTRODUCTION
Our PUR shielded servo power cable is a 1:1 drop-in replacement for Siemens original 6FX5008 (MOTION-CONNECT 500 fixed installation) and 6FX8008 (MOTION-CONNECT 800 continuous flex drag chain) series motor power wires. Designed to transmit stable power and brake control signals between SINAMICS servo drives and SIMOTICS 1FK7, 1FL6, 1FT7 motors, this DESINA-compliant cable adopts VDE 0295 Class 6 extra-fine bare copper strands, double EMC shielding and wear-resistant orange PUR outer sheath. We provide pre-molded M23 motor connectors, customizable core cross-section, cable length and wire configuration, fully compliant with CE, RoHS and industrial VDE standards.
Matching Siemens Original Model & Series
6FX8008 – MOTION-CONNECT 800 (High Flex Drag Chain Grade)
Dynamic moving application, millions of bending cycles, oil/coolant resistant, same spec as Siemens high-flex servo power cable
Common equivalent part numbers: 6FX8008-5FA00, 6FX8008-1BA25, 6FX8008-2DB00
6FX5008 – MOTION-CONNECT 500 (Fixed Static Installation Grade)
Low-cost stationary wiring for machine frames, non-dynamic laying
Common equivalent part numbers: 6FX5008-5FA00, 6FX5008-1CA00
Compatible Siemens Drive & Motor List
Drive System: SINAMICS S120, S210, G120X, S200

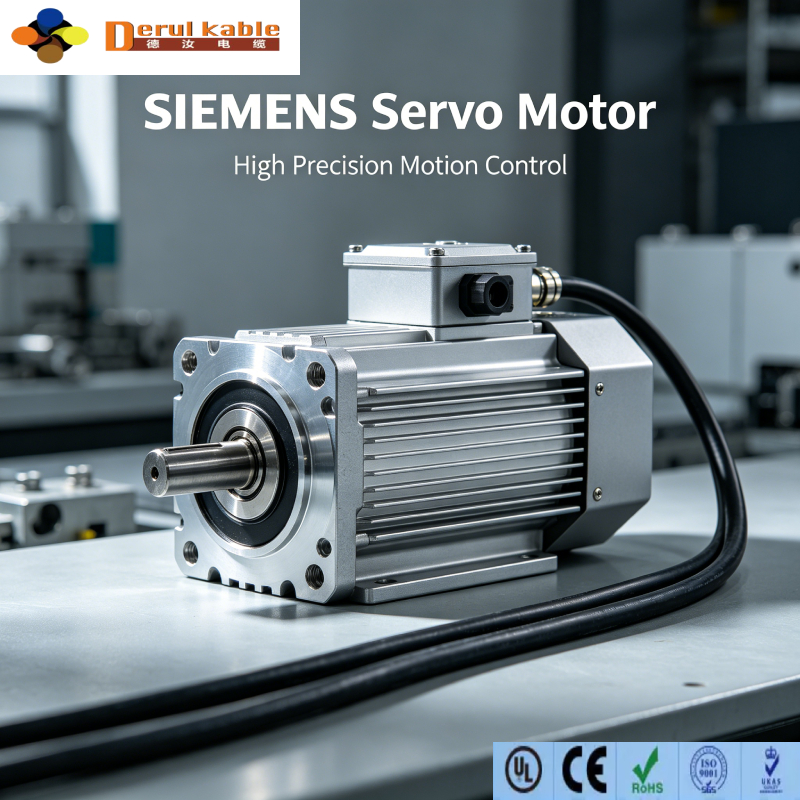

Servo Motor: SIMOTICS 1FK7, 1FL6, 1FT7, 1FK2
Built-in function: Integrated brake control cores for motor holding brake wiring

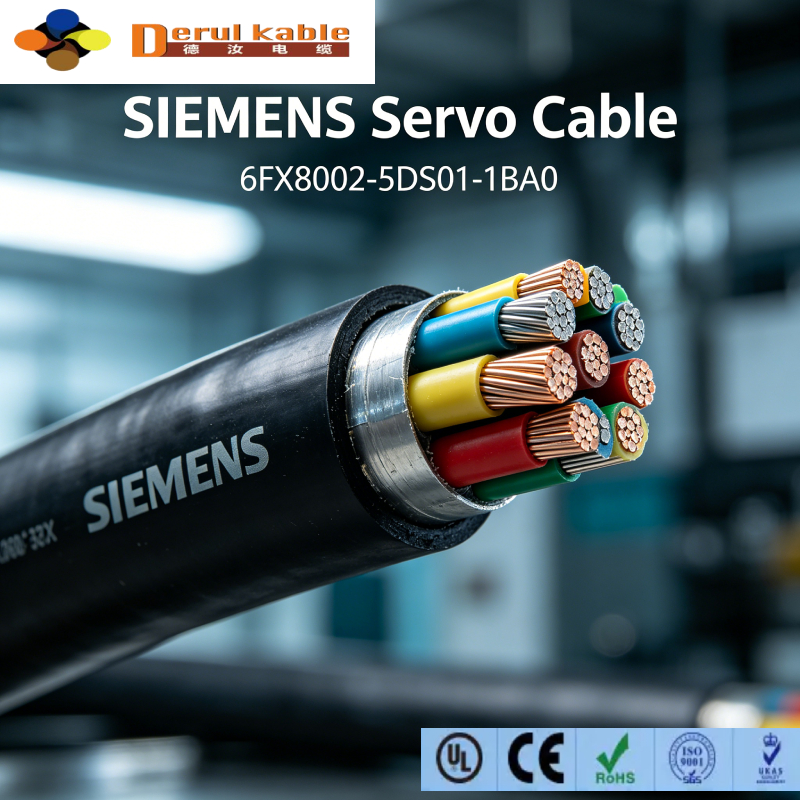

Cable Internal Construction & Full Technical Specs

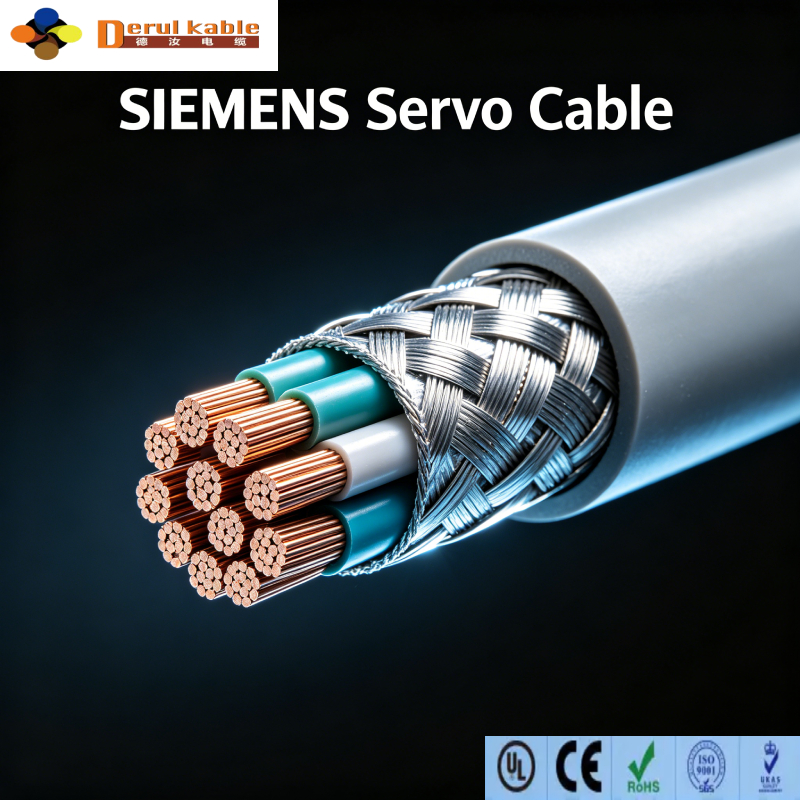

PUR High Flex Cable Structure
Conductor: Extra-fine bare copper, VDE 0295 Class 6 (max bending resilience)
Core Insulation: High temperature resistant special thermoplastic
Inner Wrap: Polyester tape to reduce internal friction during flexing
EMC Double Shield: Full aluminum foil inner wrap + 85%-90% coverage tinned copper braid (anti power interference)
Outer Sheath: Orange RAL2003 high-performance PUR (same color as Siemens OEM)
Core Layout Standard: 4 power cores + 2 brake control cores (custom core layout available)
Standard Technical Data
Rated Voltage: Power cores 600/1000V; Brake control cores 250V
Test Voltage: Power core 4000V; Control core 1000V
Temperature Range: Dynamic flex -40℃ ~ +80℃; Static installation -50℃ ~ +90℃
Min Bending Radius: Dynamic 10×OD; Static 7×OD
Drag Chain Performance: Max speed 5m/s, acceleration 50m/s², ≥10 million bending cycles
Compliance: DESINA, MOTION-CONNECT standard, CE, RoHS, Reach, ISO9001
Industry Application Scenarios
CNC Machine Tool Equipment
Injection molding machine moving axes, textile spinning & weaving servo motor power supply
6FX8008 (PUR High Flex) vs 6FX5008 (PVC Fixed) Comparison Table
| Parameter | Our PUR 6FX8008 Equivalent (Drag Chain) | PVC 6FX5008 Equivalent (Fixed Only) |
|---|---|---|
| Outer Sheath | Polyurethane PUR (Orange RAL2003) | PVC |
| Drag Chain Suitability | Excellent (10M+ bend cycles) | Not recommended for dynamic movement |
| Oil/Coolant Resistance | Superior | Poor, easy swelling & aging |
| Low Temp Flexibility | -40℃ no cracking | Brittle below -10℃ |
| Dynamic Service Life | Long-term heavy duty | Short lifespan for moving axes |
| Best Usage | Robot, high-speed automation, machine tools | Static cabinet-to-motor fixed wiring |
FAQ
Q: What is the difference between 6FX5008 and 6FX8008 Siemens servo power cable?
A: 6FX5008 (MOTION-CONNECT 500) is PVC fixed installation cable for stationary wiring; 6FX8008 (MOTION-CONNECT 800) is PUR high-flex drag chain cable designed for millions of reciprocating bending cycles on moving machine axes.
Q: Will your servo cable trigger SINAMICS drive error codes?
A: Double full EMC shielding and identical core impedance match original Siemens specs, effectively eliminates power interference alarms like F30001, F30002 motor overload/signal faults.
Q: Do your cables include brake wires for SIMOTICS motors?
A: Standard layout comes with 2 built-in brake control cores; we support custom core configurations without brake wires upon request.
Q: What connectors can you pre-assemble for Siemens servo motors?
A: Standard straight & angled M23 motor plugs, custom crimped terminals, bare flying wire ends available.
Q: Can I get free test samples before bulk order?
A: 1–5m free testing samples are available for system verification, factory direct bulk wholesale
Our Factory Custom & After-Sales Service
1:1 replication of Siemens DESINA wire color coding and pin definitions
Custom length range: 0.5m up to 200 meters
Full processing: Connector molding, wire stripping, printing marking, grounding assembly
Professional special cable factory with years of Siemens matching cable production experience
Complete technical drawing, test report, certification documents provided for customs clearance
About Us
ADVANTAGES
Exact OEM Pinout & Electrical Matching
Benefit: Plug-and-play swap for Siemens motors, no drive parameter modification, no power fluctuation or motor alarm codes
Orange PUR Abrasion & Oil Resistant Sheath
Benefit: Withstands machine coolant, cutting oil, hydraulic fluid; no sheath cracking in low-temperature factory environments, 3–5x longer lifespan than PVC fixed cables
Heavy-Duty Double EMC Shield
Benefit: Blocks EMI interference from adjacent high-current cables, stable motor running, no speed jitter or SINAMICS drive fault alerts
Ultra High Dynamic Flex Performance
Benefit: Stable long-term operation for high-speed robot axes, CNC machining centers, automated gantry equipment
Full Customization Support
Benefit: Adjust wire cross-section, total length, straight/angled M23 connectors, stripped bare ends,
CUSTOMIZATION CAPABILITY
We are your reliable partner in special cable customization
Considering different working conditions and clients' request, Derul's cable product can be highly customized.
To best meet the demands in our clients' practical application, we can offer highly customized solution and quality cable product, to ensure the cable is suitable for our clients.
We welcome new clients to send us specific requirement. Our teams will evaluate it and offer unique technical datasheet and technical drawings to you.
Our competitive price which most clients could afford will be another key to our successful and efficient cooperation.
As the original manufacturer, we provide quick response to any of our clients' inquiry. We have close interconnection between the workshop, engineer and sales person.
FAQ
Q: Is Derul Cable the original manufacturer?
A: Derul Cable is a special cable manufacturer. Our factory is based in Shanghai.
Q: Is the price negotiable?
A: Yes, the price is negotiable. Our price is also flexible due to several factors including purchase quantity.
Q: What is the regular MOQ for your cable?
A: Any quantity is okay to purchase for product at stock. For product with no stock, its MOQ is usually 100-200 meters per type.
Q: How can I get sample?
A: Usually you only need to pay the express freight, and after your confirmation of the product dimension and structure, we can arrange the sample and send it directly to you.
Q: Is OEM or ODM service available?
A: OEM and ODM services are both available. You can provide us with your requirement for the product and we will evaluate it to push forward.
Q: What is the regular production time?
A: For regular quantity, it usually costs about 15-25 days to produce.
