Industrial Robot Cable
Siemens Compatible Servo Feedback Encoder Cable
Specification
| Basic Structure | Conductor+Insulation+Jacket+Hose |
| Conductor | Plain Copper/ Tinned Copper |
| Insulation | PE |
| Braid | Kevlar/ Plain Copper/ Tinned Copper |
| Jacket | PUR/TPE/PCP |
INTRODUCTION

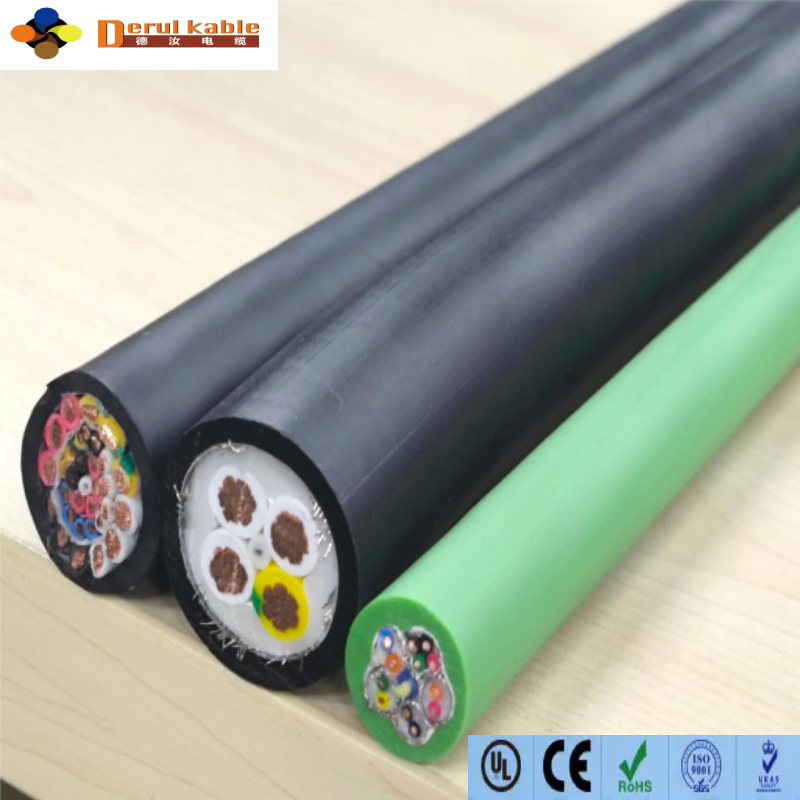

Our PUR high flexible servo feedback encoder cable is fully interchangeable with Siemens original 6FX5002, 6FX8002 MOTION-CONNECT 380/800 series signal wires. Designed for precise position, speed and temperature signal transmission between SINAMICS drives and SIMOTICS servo motors, this double-shielded cable adopts VDE Class 6 extra-fine copper strands for millions of drag chain reciprocating bends. We support pre-molded M23 / 25pin D-Sub connectors, custom length, pinout and sheath material, perfectly matching incremental, absolute, DRIVE-CLiQ & EnDat encoder protocols. All cables pass CE, RoHS, DESINA and ISO9001 industrial standards.Matching Siemens Original Part Numbers
Main Equivalent Model Series
Dynamic Drag Chain Type (6FX8002 series, MOTION-CONNECT 380 high flex)
6FX8002-2CA31, 6FX8002-2CA80: For SIMOTICS 1FK7, 1FL6 incremental encoders
Fixed Installation Type (6FX5002 series, MOTION-CONNECT 350 stationary)
6FX5002-2CA31, 6FX5002-2DC30: Low cost static wiring for production lines
Compatible Siemens System List
Drive: SINAMICS S120, S210, G120X
Servo Motor: SIMOTICS 1FK7, 1FL6, 1FK2, 1FT7
Encoder Protocol: Incremental A/B/Z, Absolute EnDat, DRIVE-CLiQ, Resolver feedback

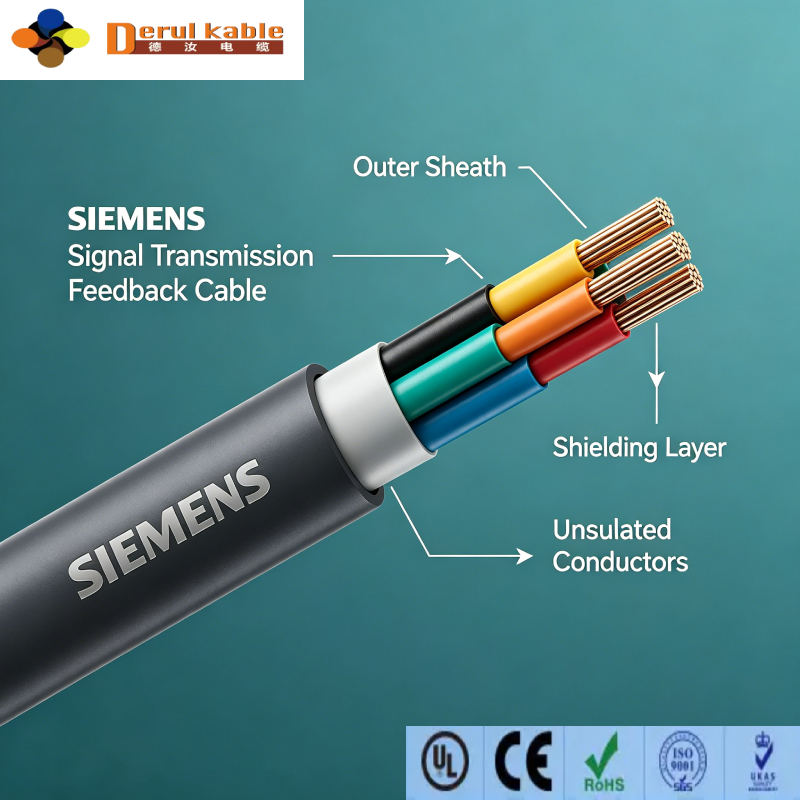

Cable Internal Construction & Technical Specs
Structure (PUR High Flex Version)
Conductor: Bare extra-fine copper VDE 0295 Class 6 (max flexibility for drag chain)
Signal Pairs: Twisted balanced differential pairs (low capacitance, stable 5V RS422 signal)
Inner Shield: Aluminum foil full wrap; Outer shield: 90% coverage tinned copper braid (anti EMI/RFI interference)
Outer Sheath: High-performance PUR (green standard color same as Siemens original)
Core layout: Standard 3×(2×0.14mm²)+4×0.14mm²+2×0.5mm² same as 6FX8002-2CA31 stock spec
Standard Technical Data
Rated Voltage: 30V AC, Test Voltage: 500V
Temperature: Dynamic flex -40℃ ~ +80℃; Static -50℃ ~ +80℃
Min Bending Radius: Dynamic 7×OD, Fixed 5×OD
Max Drag Chain Speed: 5m/s, Acceleration 50m/s²
Bending Lifespan: ≥10 million cycles (equal to Siemens MOTION-CONNECT 380)
Certification: CE, RoHS, Reach, DESINA, ISO9001
Wide Industrial Application Scenarios
Injection molding machine axes, textile spinning machine servo drive systems
PUR Feedback Cable vs Siemens OEM PVC Cable
| Parameter | Our PUR Siemens Compatible Feedback Cable | Siemens OEM PVC Fixed Cable |
|---|---|---|
| Drag Chain Suitability | Excellent (10M+ bend cycles) | Only static laying |
| Oil/Chemical Resistance | Superior | Weak, easy swelling |
| Low Temp Flexibility | -40℃ no cracking | Brittle below -10℃ |
| Outer Sheath Material | Polyurethane PUR | PVC |
| Dynamic Service Life | 3–5x longer | Short lifespan for moving axes |
| Cost | 60%-75% of official Siemens price | High original factory price |
Q: Is your cable a direct replacement for Siemens 6FX8002-2CA31?
A: Yes, identical pinout, core layout, electrical parameters and green PUR sheath, fully plug-and-play for 1FK7/1FL6 servo motors and SINAMICS S120/S210 drives.
Q: Can this feedback cable run inside drag chains continuously?
A: Our PUR 6FX8002 equivalent model is designed for dynamic drag chain operation with 10 million bending cycles; 6FX5002 PVC version for fixed installation only.
Q: What connectors do you pre-assemble for Siemens systems?

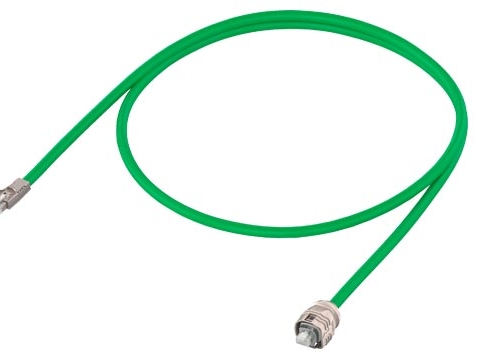

A: Standard M23 straight/angled plug, 25-pin D-Sub connectors; we support custom crimped or molded connector assembly.
Q: Will incompatible feedback cable trigger Siemens drive fault codes?
A: Our balanced twisted pairs and double shielding ensure stable differential signals, effectively avoiding F31111, F31112 encoder signal errors on SINAMICS drives.
Q: Do you offer free samples for Siemens system testing?
A: Yes, 1m–5m free test samples available for factory verification, bulk wholesale factory direct pricing.
Our Factory Custom Service
Exact copy of Siemens 6FX series pin definitions, wire color coding
Custom length from 0.5m to 200m
Connector molding, wire stripping, laser marking service
12-year professional special cable factory, full technical drawing support
12-month product quality warranty
About Us
ADVANTAGES
1:1 Pinout & Electrical Match with Siemens OEM
Benefit: Plug-and-play replacement, no program modification, zero signal loss for closed-loop servo feedback
PUR High Abrasion & Oil Resistant Sheath
Benefit: Far longer service life than PVC cables in oily machine tool workshops, no sheath cracking in low temperature workshop
Double Heavy-Duty Shield Structure
Benefit: Eliminates EMI interference from adjacent power cables, no position drift or alarm code F31111 on SINAMICS drives
Massive Dynamic Bending Resistance
Benefit: Stable performance for high-speed robot axes, gantry equipment, automated machining centers
Full Customization Service
Benefit: Adjust cable length, connector type (straight/angled M23, D-Sub), wire cross-section, special shielding per customer drawings
CUSTOMIZATION CAPABILITY
We are your reliable partner in special cable customization
Considering different working conditions and clients' request, Derul's cable product can be highly customized.
To best meet the demands in our clients' practical application, we can offer highly customized solution and quality cable product, to ensure the cable is suitable for our clients.
We welcome new clients to send us specific requirement. Our teams will evaluate it and offer unique technical datasheet and technical drawings to you.
Our competitive price which most clients could afford will be another key to our successful and efficient cooperation.
As the original manufacturer, we provide quick response to any of our clients' inquiry. We have close interconnection between the workshop, engineer and sales person.
FAQ
Q: Is Derul Cable the original manufacturer?
A: Derul Cable is a special cable manufacturer. Our factory is based in Shanghai.
Q: Is the price negotiable?
A: Yes, the price is negotiable. Our price is also flexible due to several factors including purchase quantity.
Q: What is the regular MOQ for your cable?
A: Any quantity is okay to purchase for product at stock. For product with no stock, its MOQ is usually 100-200 meters per type.
Q: How can I get sample?
A: Usually you only need to pay the express freight, and after your confirmation of the product dimension and structure, we can arrange the sample and send it directly to you.
Q: Is OEM or ODM service available?
A: OEM and ODM services are both available. You can provide us with your requirement for the product and we will evaluate it to push forward.
Q: What is the regular production time?
A: For regular quantity, it usually costs about 15-25 days to produce.
