Industrial Robot Cable
Servo Motor Power Line Cable for Fanuc / Mitsubishi High Power Servo Motor Encoder Cable
Specification
| Basic Structure | Conductor+Insulation+Jacket+Hose |
| Conductor | Plain Copper/ Tinned Copper |
| Insulation | PE |
| Braid | Kevlar/ Plain Copper/ Tinned Copper |
| Jacket | PUR/TPE/PCP |
INTRODUCTION
An ODM servo motor power line cable is a custom-built replacement for original Fanuc and Mitsubishi servo cables. It delivers three-phase motor power (U/V/W) and carries encoder feedback between the amplifier and motor — with OEM-equivalent performance at a lower cost and shorter lead time.
What It Includes
Power line — 3-phase U/V/W plus ground
Encoder line — shielded twisted pairs for position/speed feedback
Brake wires — for motors with holding brakes
Key Specifications
Conductor — copper, 0.5–0.75 mm² (power); AWG 22 pairs (encoder)
Voltage — 450/750 V (e.g., Mitsubishi MR-PWCNS4 cables)
Shielding — foil + braid on encoder; braid on power
Temperature — −20 °C to +85 °C
Connectors — Fanuc M-terminal (straight/right-angle); Mitsubishi MR-PWCNS4 for HG-SR/HG-JR/HK-ST
Length — 3 m / 5 m / 9 m standard; custom up to 30 m
Rating — IP65 cable, IP67 connectors
Why It Matters

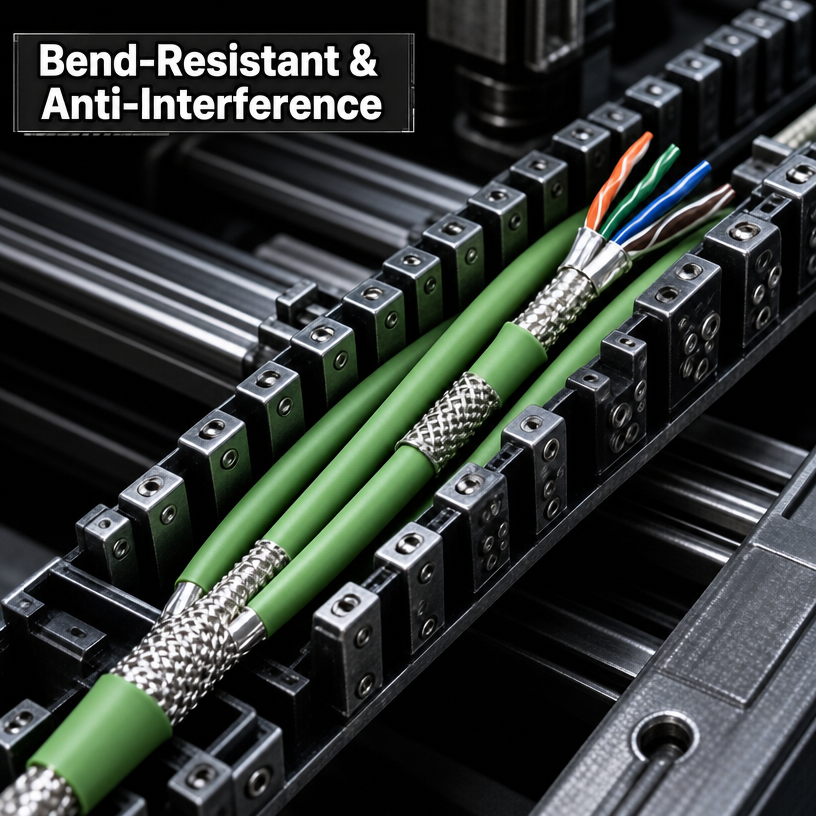

Servo motors run in high-cycle, high-speed motion. Standard cables fail quickly in drag chains; dedicated servo cables survive millions of bending cycles and resist EMI through double shielding. Mitsubishi allows up to 30 m of encoder cable — 1 pair to 5 m, up to 5 pairs at 30 m.
FAQ
Are ODM cables compatible with original connectors? Yes, when pinout and connector series are matched exactly.
What should I order with? Original part number (e.g., Fanuc F06B-0001-K011; Mitsubishi MR-PWCNS4CBL3M-L), motor model, length, and connector orientation.
ADVANTAGES
FAQ
Q: Is Derul Cable the original manufacturer?
A: Derul Cable is a special cable manufacturer. Our factory is based in Shanghai.
Q: Is the price negotiable?
A: Yes, the price is negotiable. Our price is also flexible due to several factors including purchase quantity.
Q: What is the regular MOQ for your cable?
A: Any quantity is okay to purchase for product at stock. For product with no stock, its MOQ is usually 100-200 meters per type.
Q: How can I get sample?
A: Usually you only need to pay the express freight, and after your confirmation of the product dimension and structure, we can arrange the sample and send it directly to you.
Q: Is OEM or ODM service available?
A: OEM and ODM services are both available. You can provide us with your requirement for the product and we will evaluate it to push forward.
Q: What is the regular production time?
A: For regular quantity, it usually costs about 15-25 days to produce.
