Industrial Robot Cable
Robot CY Shielded Control Cable _YSLCY Screened Flexible Cable
Specification
| Basic Structure | Conductor+Insulation+Jacket+Hose |
| Conductor | Plain Copper/ Tinned Copper |
| Insulation | PE |
| Braid | Kevlar/ Plain Copper/ Tinned Copper |
| Jacket | PUR/TPE/PCP |
INTRODUCTION
CY cable also marked YSLCY under German DIN VDE standard, is a classic copper braid shielded flexible control cable widely matched for industrial robot systems. The tinned copper woven screen effectively blocks electromagnetic interference from servo motors, welding equipment and frequency converters, ensuring stable signal & power delivery between robot control cabinet and mechanical arm. Our factory produces full-size CY robot cables with Class5 high-flex conductors, compliant with VDE 0281, IEC 60227 and EN50525 standards, supporting customized core count, cross-section and LSZH low-smoke halogen-free sheath options.
Definition & Structure Meaning of CY / YSLCY
First Y: PVC core insulation
S: Flexible stranded conductor structure
L: Color coded core identification
C: Tinned copper braided EMI screen
Last Y: PVC outer protective sheath

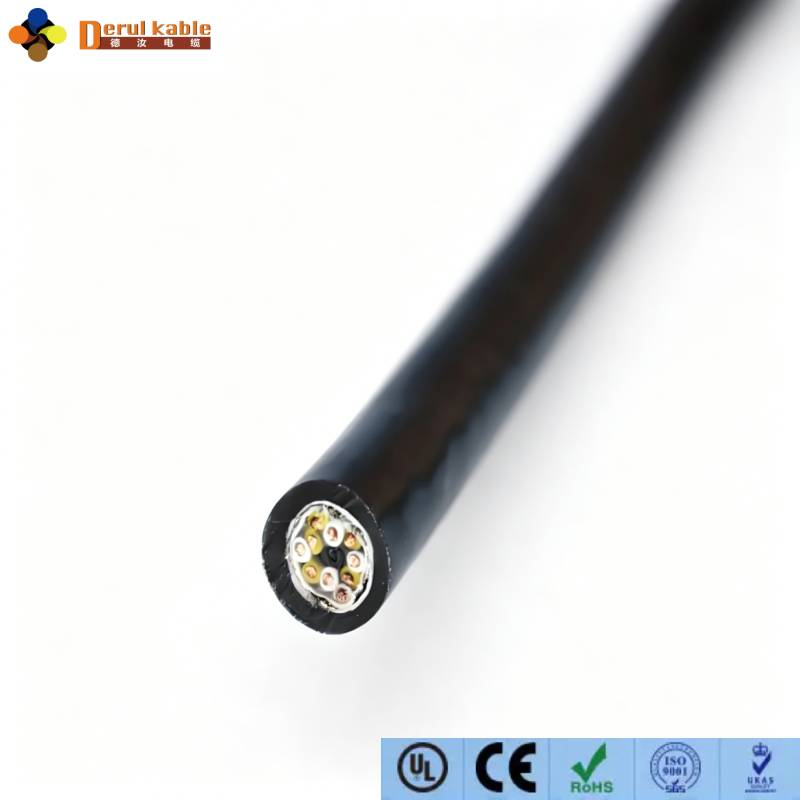

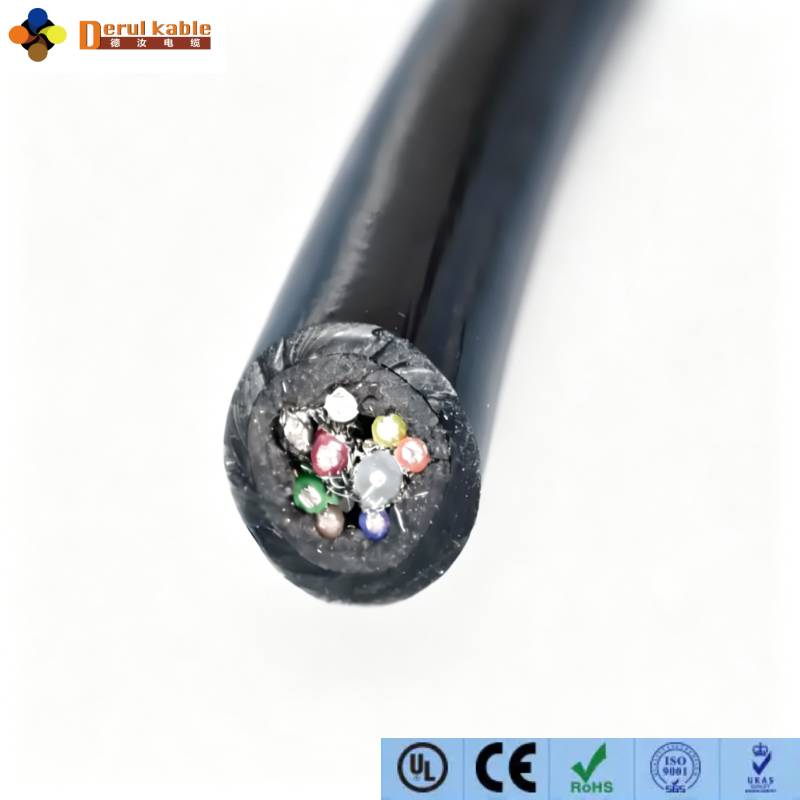

Full internal build:
Conductor: Class5 fine stranded bare copper (DIN VDE0295)
Core insulation: High quality PVC compound
Separator tape: PET wrapping for stable structure

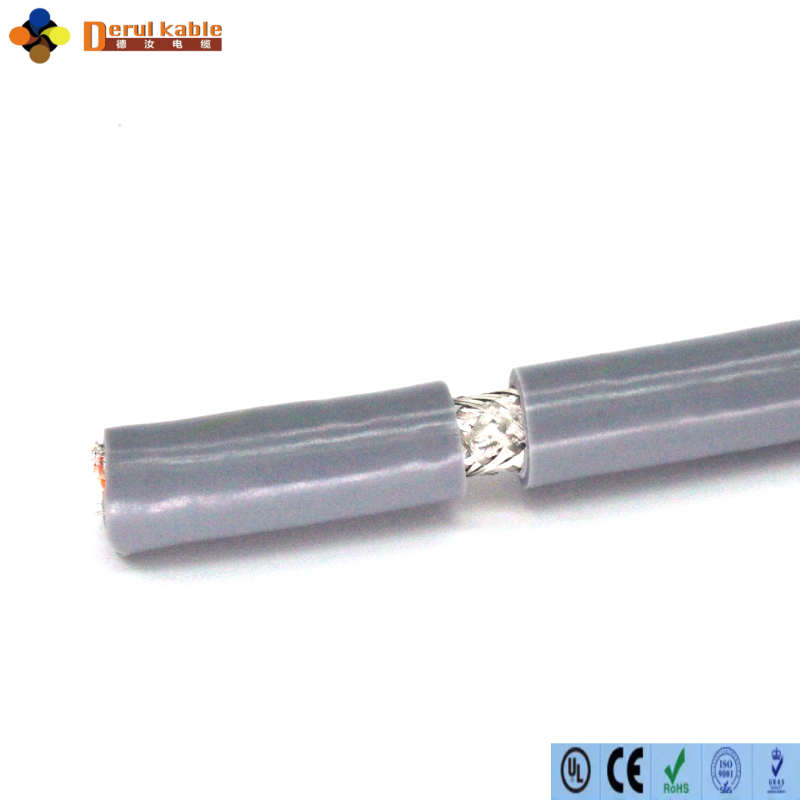

Shield: High coverage tinned copper braid screen
Outer jacket: Wear-resistant PVC (LSZH optional for fire safety scenarios)
Core Performance Parameters
Rated working voltage: 300/500V
Withstand test voltage: 2000V
Temperature range: Static -35℃ ~ +70℃; dynamic flex -15℃ ~ +70℃
Minimum bend radius: Fixed install 10× cable OD; frequent moving 15× cable OD
Flame retardant: IEC60332-3 standard
Insulation resistance: ≥20 MΩ·km
Anti-interference: Full coverage copper braid suppresses EMI/RFI crosstalk
Two Main Usage Types For Robots
Fixed Layout CY Robot Cable — Cabinet internal wiring, static panel connection
High Flex CY Robot Cable — Slight reciprocating movement between robot base & arm

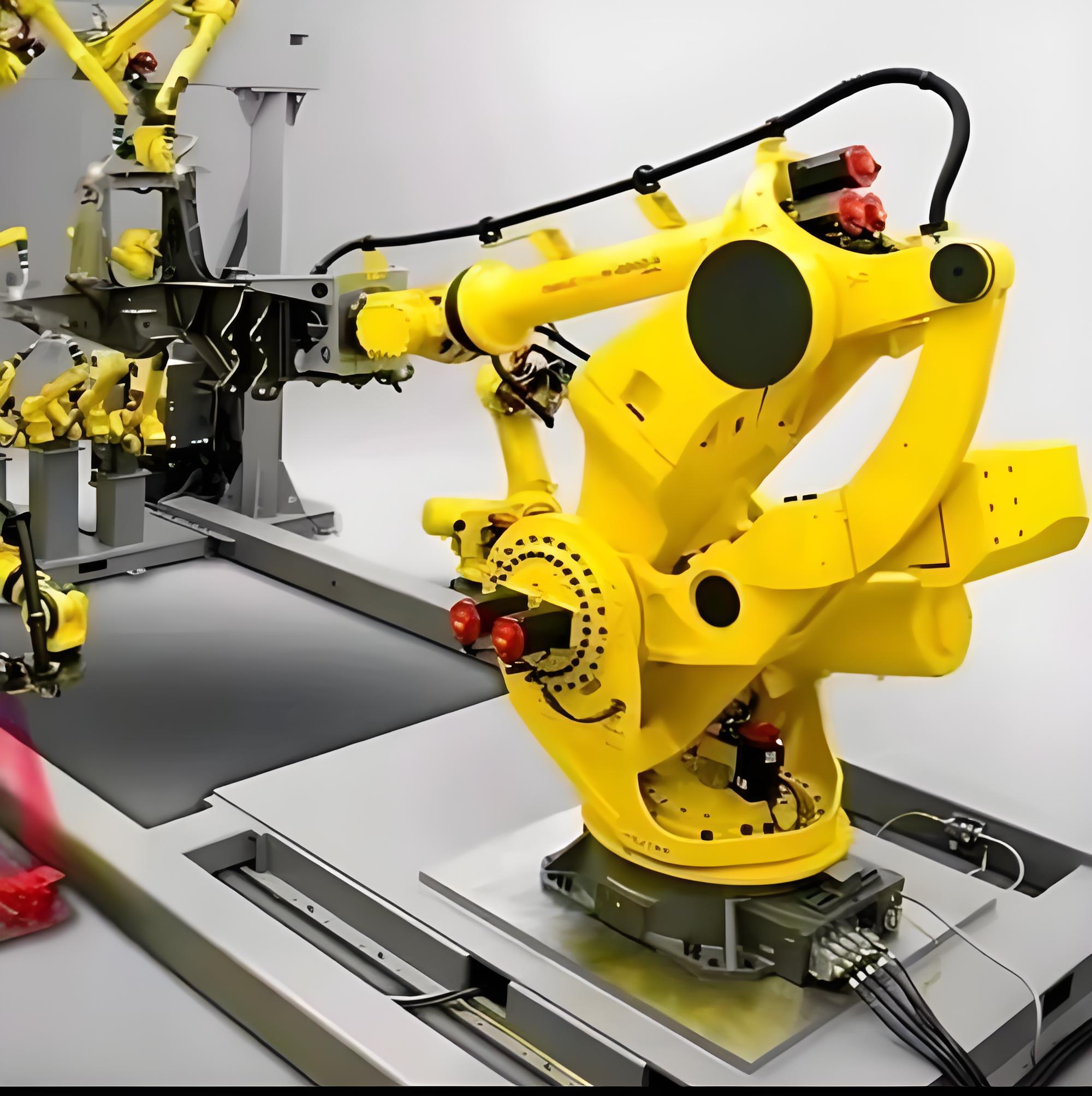

Wide Robot & Automation Application Scenarios
6-axis handling robot, welding robot, palletizing robot, spraying robot, robot control panel signal wiring, PLC control loop, machine tool automation, assembly production line measuring circuit
Suitable installation: Dry & moist indoor workshops; not for direct outdoor UV exposure (needs conduit protection)
Global Certifications & Factory E-E-A-T
VDE, IEC, CE, RoHS2.0, REACH, ISO9001 quality management system. We provide original third-party bending, aging, insulation resistance test reports; free small samples for customer performance verification before bulk order.
General Technical Parameter Reference Table
| Specification Item | Standard Value |
|---|---|
| Conductor Class | Class5 Flexible Copper |
| Usable Core Quantity | 2 cores ~ 36 cores customizable |
| Single Core Cross Section | 0.5mm² ~ 16mm² |
| Sheath Material | Standard PVC / Optional LSZH |
Q1: What is the difference between CY, SY and YY control cables?
A1: CY = copper braid screen (EMI anti-interference for signal); SY = steel wire armour (mechanical impact protection only); YY = no screen, basic unshielded flexible control wire.
Q2: Can CY cable work for robot drag chain high-frequency bending?
A2: Standard PVC CY fits slight repeated movement; heavy drag chain high-cycle bending needs upgraded PUR high-flex CY variant we customized.
Q3: Is YSLCY the same as CY cable?
A3: Yes, YSLCY is the full DIN VDE model name, CY is the short universal trade name used across EU, UK and global automation markets.
About Us
Derul anti-twist bus cable for wind power nacelle
ADVANTAGES
Excellent anti-electromagnetic interference, zero signal loss for robot encoder & control lines
Class5 flexible structure resists fatigue cracking for long-term robot micro-bending
PVC sheath resistant to workshop dust, mild coolant and light oil splashes
Color-coded cores easy for electricians quick wiring inside robot panels
Meet EU standard specifications, direct replacement for European brand original CY cables
CUSTOMIZATION CAPABILITY
We are your reliable partner in special cable customization
Considering different working conditions and clients' request, Derul's cable product can be highly customized.
To best meet the demands in our clients' practical application, we can offer highly customized solution and quality cable product, to ensure the cable is suitable for our clients.
We welcome new clients to send us specific requirement. Our teams will evaluate it and offer unique technical datasheet and technical drawings to you.
Our competitive price which most clients could afford will be another key to our successful and efficient cooperation.
As the original manufacturer, we provide quick response to any of our clients' inquiry. We have close interconnection between the workshop, engineer and sales person.
FAQ
Q: Is Derul Cable the original manufacturer?
A: Derul Cable is a special cable manufacturer. Our factory is based in Shanghai.
Q: Is the price negotiable?
A: Yes, the price is negotiable. Our price is also flexible due to several factors including purchase quantity.
Q: What is the regular MOQ for your cable?
A: Any quantity is okay to purchase for product at stock. For product with no stock, its MOQ is usually 100-200 meters per type.
Q: How can I get sample?
A: Usually you only need to pay the express freight, and after your confirmation of the product dimension and structure, we can arrange the sample and send it directly to you.
Q: Is OEM or ODM service available?
A: OEM and ODM services are both available. You can provide us with your requirement for the product and we will evaluate it to push forward.
Q: What is the regular production time?
A: For regular quantity, it usually costs about 15-25 days to produce.
