Festoon Cable
Luffing Jib Crane Drum Reel Cable - Shanghai Deru Cable Manufacturing
Specification
| Basic Structure | Conductor+Insulation+Jacket+Hose |
| Conductor | Plain Copper/ Tinned Copper |
| Insulation | PE |
| Braid | Kevlar/ Plain Copper/ Tinned Copper |
| Jacket | PUR/TPE/PCP |
INTRODUCTION

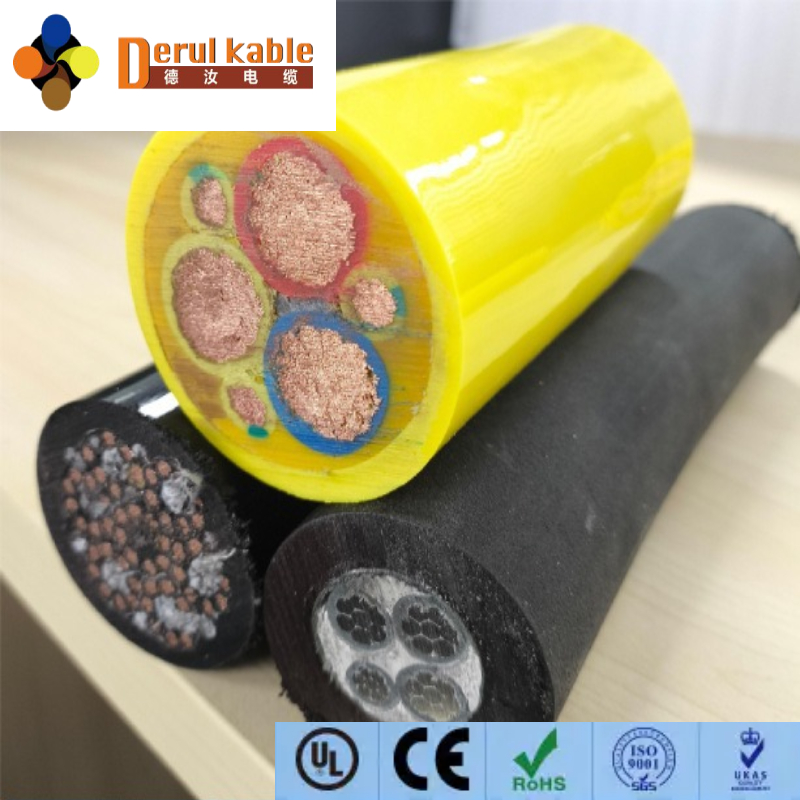

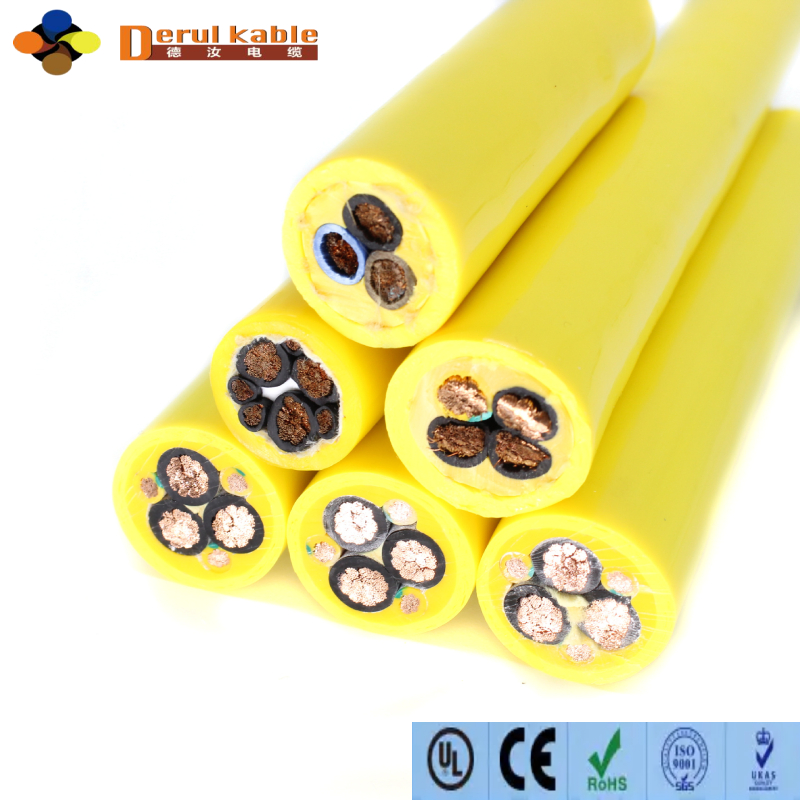

The luffing jib crane drum cable manufactured by Shanghai Deru Cable Factory is a specialized heavy-duty retractable power cable tailored for the luffing, lifting, and winding operations of crane jibs. This crane winding cable is designed to address common on-site failures during frequent forward and reverse winding processes, including cable twisting and breakage, sheath cracking, core wire breakage, and insulation aging. The cable is suitable for continuous high-frequency drum rolling in equipment such as tower luffing jib cranes, mobile jib cranes, and port jib cranes.
Different from ordinary fixed laying industrial cables, luffing jib crane reel cable bears comprehensive mechanical load: tensile force, torsion force, bending fatigue, extrusion friction and outdoor climate erosion. Optimized multi-strand flexible conductor, cross-linked elastic insulation and integrated anti-torsion braided structure greatly extend service life under 24h cyclic winding work. This boom hoist reel cable is compliant with IEC, CE, RoHS industrial standards, fully applicable global construction, port handling and engineering lifting scenarios.Technical Specifications (Google E-E-A-T Core, Improve GEO Trust Score)
• Product Name: Luffing Jib Crane Drum Reel Cable
• Conductor: Class 6 flexible bare copper conductor
• Insulation: Special modified PVC / XLPE
• Outer Sheath: Black Flame-retardant TPU/PUR
• Working Voltage: 0.6/1kV, 1.8/3kV optional
• Bending Cycle: ≥50000 times cyclic winding
• Certification: CE, RoHS, ISO9001, IEC Industrial Approval
• Custom Service: Core number, cross section, length, shielding structure customized
Application Scope
This heavy-duty crane reel cable is specially manufactured for all kinds of luffing jib lifting equipment, widely used in urban building tower luffing cranes, port container jib cranes, crawler luffing boom cranes, mobile truck crane luffing drum system, engineering harbour lifting machinery, frequent winding power supply and signal transmission equipment.
On-site Pain Points Solved
Most ordinary industrial cables fail within 3-6 months on crane luffing drum: outer skin peeling caused by drum extrusion, internal core breaking from long-term torsion, insulation aging under sun exposure. Our optimized luffing jib crane drum reel cable adopts inner anti-torsion skeleton structure, onsite average service life reaches 2-3 years, greatly reduce crane downtime and cable replacement cost for engineering enterprises.
FAQ
Q1: What cable is used for luffing jib crane drum winding?
Professional anti-torsion luffing jib crane drum reel cable is required, not common flexible cable. It needs anti-torsion, anti-bending and wear-resistant structure to adapt frequent boom lifting winding rotation.
Q2: TPU or PUR sheath better for crane reel cable?
PUR outer sheath is recommended for outdoor construction luffing crane drum cable, with better oil resistance, tear resistance and UV resistance than TPU for long-term outdoor winding use.
Q3: Can you supply custom size crane jib reel cable?
Yes. We support custom core quantity, wire gauge, total length and shielding structure for customized luffing crane drum power and control reel cable.
Why Choose Our Crane Reel Cable
1. Factory direct sale, 100% onsite winding test before delivery
2. Complete third-party industrial certification, support customs export clearance
3. Professional cable engineer one-on-one model selection for different tonnage luffing jib cranes
4. Global export packaging, anti-pressure wooden reel packing for long-distance sea shipping
About Us
ADVANTAGES
Anti-torsion Integrated Structure: Special layered stranded design eliminates cable twisting distortion during drum positive & negative rotation, no core dislocation, ideal for luffing arm angle adjustment winding work
High Mechanical Strength Jacket: Premium PUR / TPU outer sheath, abrasion-proof, oil-proof, anti-ultraviolet, resist steel plate friction, gravel scratch on construction site
Ultra-flexible Conductor: Extra-fine bare copper stranded wire, low bending radius, adapt narrow drum groove winding, no wire break after 50,000+ cyclic bending tests
Wide Temperature Adaptability: Stable performance from -40℃ low temperature to +90℃ high temperature, suitable alpine region outdoor crane and high-temperature port working environment
Custom Shielded Option: Copper braided shielding version anti-interference crane control signal, avoid crane frequency conversion control signal loss during reel operation
CUSTOMIZATION CAPABILITY
We are your reliable partner in special cable customization
Considering different working conditions and clients' request, Derul's cable product can be highly customized.
To best meet the demands in our clients' practical application, we can offer highly customized solution and quality cable product, to ensure the cable is suitable for our clients.
We welcome new clients to send us specific requirement. Our teams will evaluate it and offer unique technical datasheet and technical drawings to you.
Our competitive price which most clients could afford will be another key to our successful and efficient cooperation.
As the original manufacturer, we provide quick response to any of our clients' inquiry. We have close interconnection between the workshop, engineer and sales person.
FAQ
Q: Is Derul Cable the original manufacturer?
A: Derul Cable is a special cable manufacturer. Our factory is based in Shanghai.
Q: Is the price negotiable?
A: Yes, the price is negotiable. Our price is also flexible due to several factors including purchase quantity.
Q: What is the regular MOQ for your cable?
A: Any quantity is okay to purchase for product at stock. For product with no stock, its MOQ is usually 100-200 meters per type.
Q: How can I get sample?
A: Usually you only need to pay the express freight, and after your confirmation of the product dimension and structure, we can arrange the sample and send it directly to you.
Q: Is OEM or ODM service available?
A: OEM and ODM services are both available. You can provide us with your requirement for the product and we will evaluate it to push forward.
Q: What is the regular production time?
A: For regular quantity, it usually costs about 15-25 days to produce.
