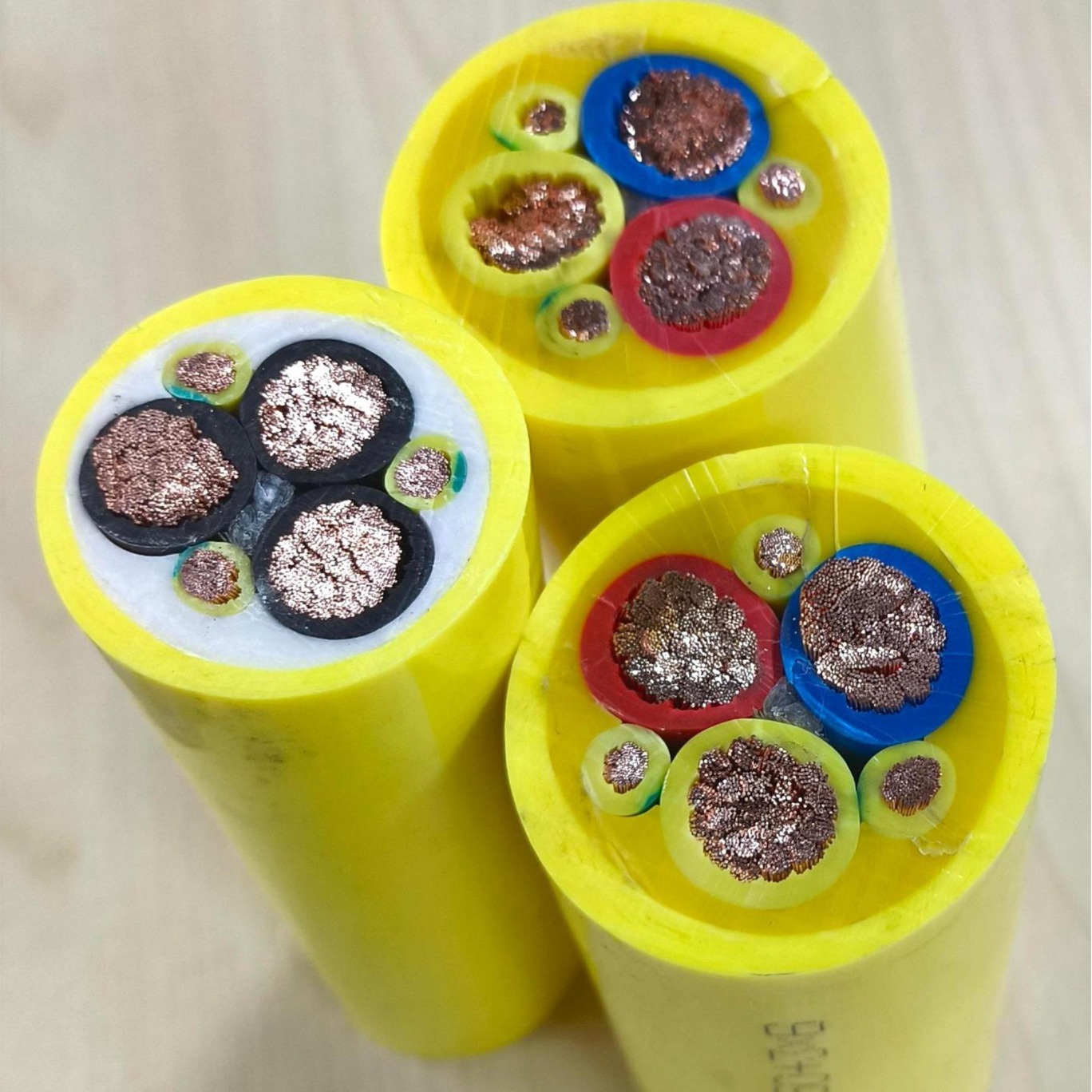

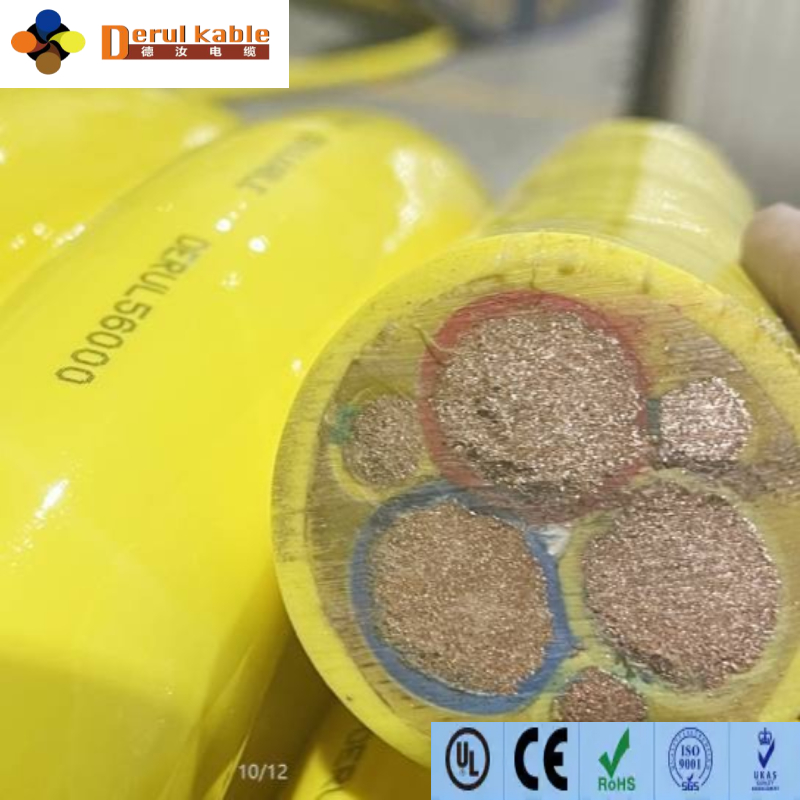

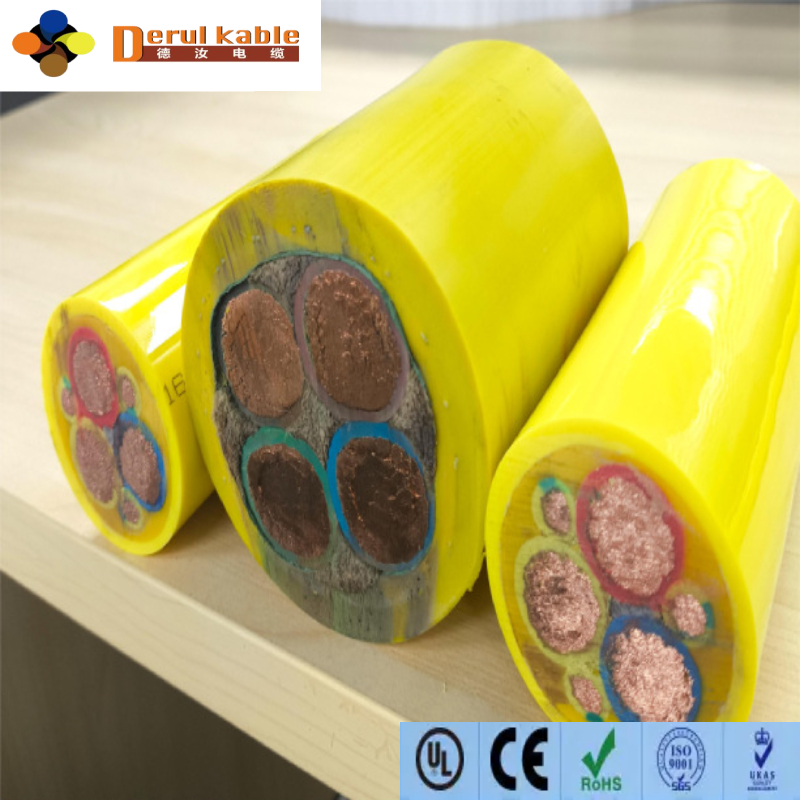

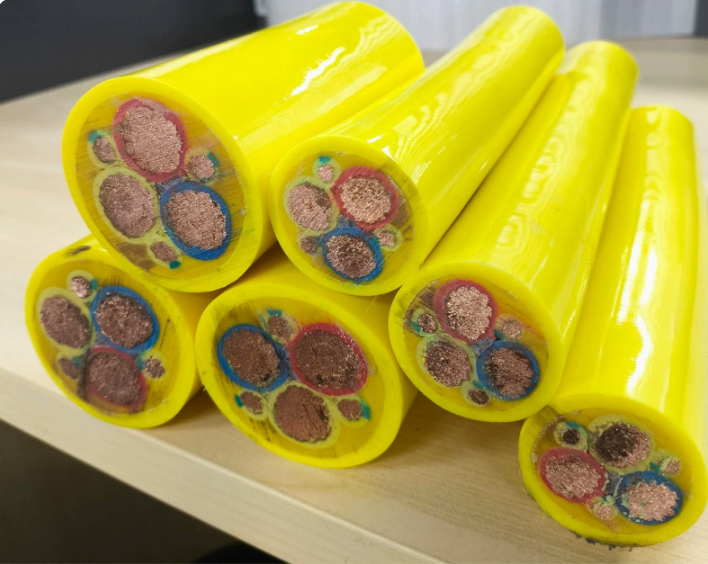

Electric LHD Reel Cable
Electric LHD Reel Cable - Underground Scooptram Trailing Power Cable
Specification
| Basic Structure | Conductor+Insulation+Jacket+Hose |
| Conductor | Plain Copper/ Tinned Copper |
| Insulation | PE |
| Braid | Kevlar/ Plain Copper/ Tinned Copper |
| Jacket | PUR/TPE/PCP |
INTRODUCTION
Our electric LHD reel cable is specially engineered as the core power supply cable for underground mine load haul dump machines (LHD, scooptram). It bears repeated winding, unwinding, torsion, dragging and sharp friction during full-time mine operation. Compared with ordinary rubber cables, this mining reel cable features ultra-high flexibility, anti-torsion structure, thick wear-resistant sheath, oil, water and acid corrosion resistance, stable transmission under harsh underground environments.
It is the standard matched cable for 2ton, 5ton, 8ton, 10ton, 12ton underground electric scooptrams and tunnel haulage equipment.
Core Structural Design
Conductor
Tinned annealed copper stranded conductor, extra fine stranding structure, high bending flexibility, low resistance, stable current transmission for long-distance reel retraction.
High-strength EPR rubber insulation, heat-resistant, voltage grade optional 0.6/1kV, 1.8/3kV, meets IEC mining cable insulation standards.
Exclusive cross torsion resistant wrapping layer, solves cable twisting, core twisting, breakage failure during frequent reel winding on LHD winch drum.
Premium PUR / Chloroprene CR rubber outer sheath, super abrasion resistant, anti-oil, anti-mud, flame retardant, tear resistant against rock sharp edges underground.
Key Technical Performance Parameters
| Item | Standard Performance |
|---|---|
| Rated Voltage | 0.6/1kV, 1.8/3kV customizable |
| Operating Temperature | -40℃ ~ +90℃ |
| Minimum Bending Radius | 6× cable outer diameter (reel moving state) |
| Torsion Resistance | ±360° repeated torsion without core break |
| Abrasion Grade | Ultra heavy mining grade |
| Resistance | Oil, water, weak acid, alkali, mine slurry |
| Flame Property | Optional flame retardant FR, flame resistant MSHA standard |
4. Product Advantages
Anti-break torsion structure: Greatly reduce cable core fracture caused by long-term reel reciprocating winding
Super wear-resistant outer jacket: Service life 2–3 times longer than ordinary mining rubber cable
Full customized service: Cross-section size, length, voltage, sheath material, color can be tailored to match different brand LHD machines
Strict factory testing: 100% electrical test, torsion cycle test, abrasion test before delivery
Compliance certification: IEC 60245, GB/T mining cable standards, support third-party inspection reports for mine tender projects
5. Customization & Order Information
We support OEM & ODM for electric LHD reel cables. Provide your LHD tonnage, motor power, required cable cross section, working tunnel environment, and we will offer professional cable matching scheme, free technical drawing and quotation within 24 hours. Packaging: Wooden reel packaging for long-distance sea transport, anti-extrusion and moisture-proof.
6. FAQ
Q1: What is LHD reel cable used for?
A1: It is the special trailing power cable wound on the drum of electric underground LHD scooptram, supplying power for walking, lifting and hydraulic system of the mining haul machine.
Q2: Why is torsion resistance critical for LHD mine cable?
A2: LHD machines turn frequently underground; ordinary cables twist internally, leading to wire break, short circuit and downtime. Our reinforced torsion structure eliminates this failure risk.
Q3: Can the reel cable work in oily mine mud?
Yes, CR/PUR outer sheath has excellent oil resistance, stable performance in mine oily slurry, no swelling or cracking.
About Us
ADVANTAGES

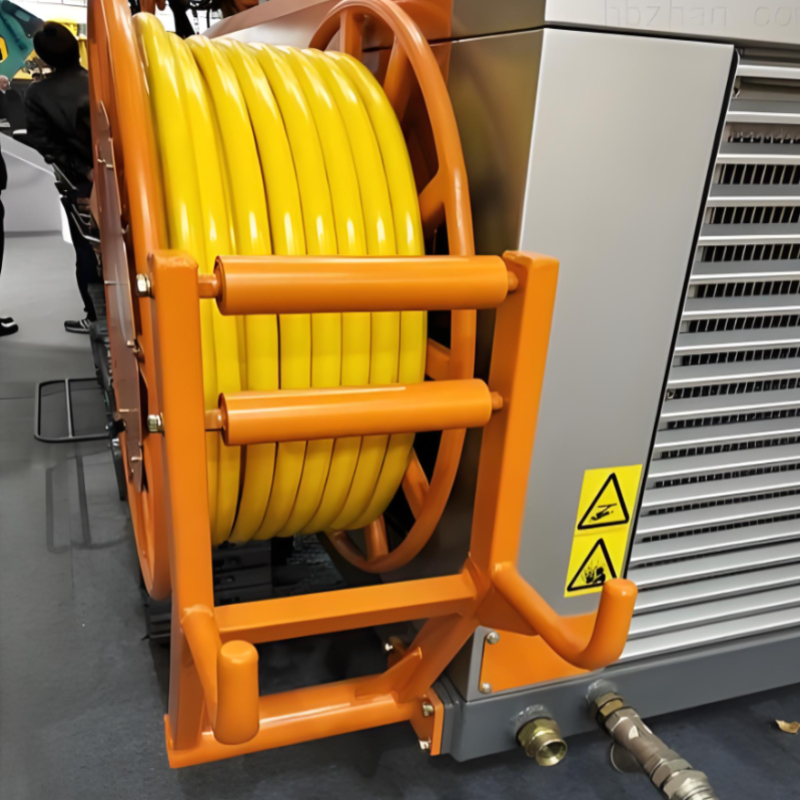

Underground metal mine electric LHD scooptram power reel system
