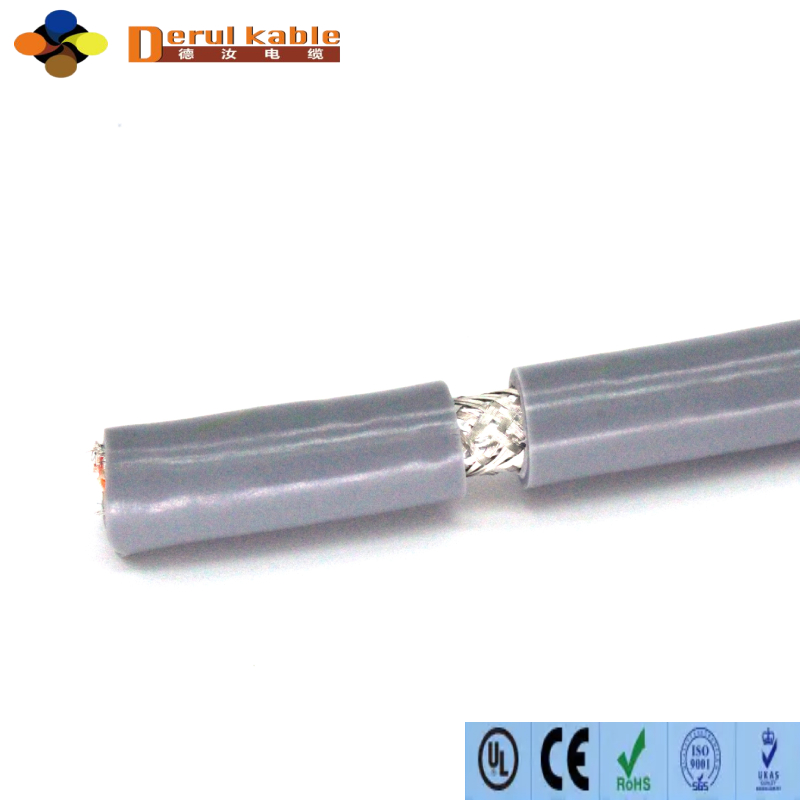

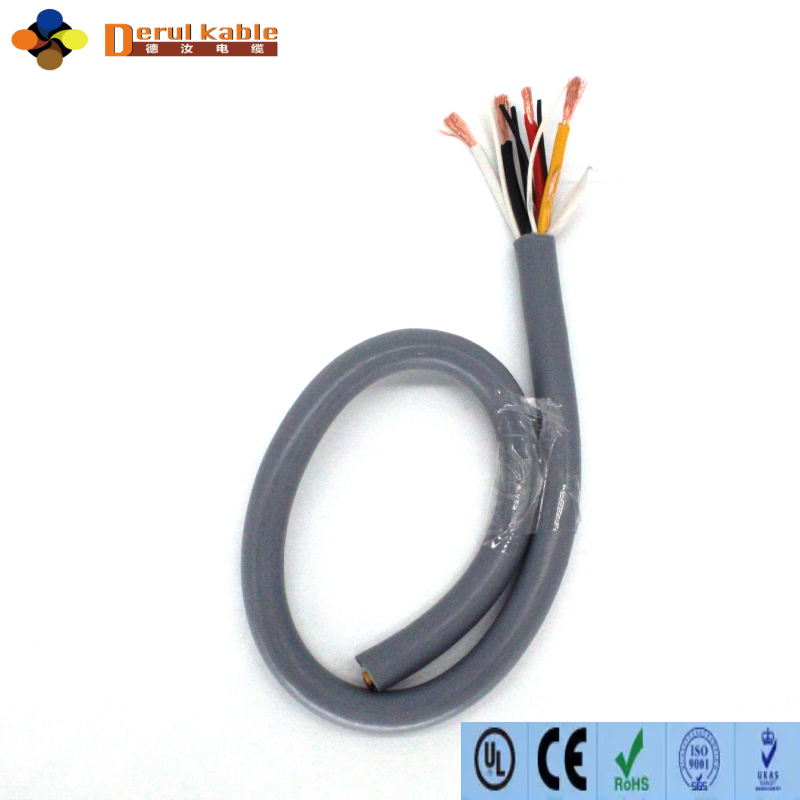

PVC Shielded Drag Chain Cable is a cost-effective continuous flex control cable designed for medium-frequency reciprocating motion in cable tracks and drag chain systems. Featuring high-flex PVC insulation and outer sheath plus full tinned copper braid shielding, this EMC-compliant towline cable effectively blocks EMI and RFI interference, ensuring stable and error-free signal transmission for automated machinery. Adopting VDE Class 6 extra-fine stranded copper conductor, it delivers reliable flexibility for daily dynamic bending, making it the most balanced solution for standard industrial control, sensing and low-power signal moving wiring scenarios.

Cable Construction & Technical Specifications

Internal Structure

Conductor: VDE 0295 Class 6 extra-fine bare stranded copper, high flexibility for continuous bending

Core Insulation: High toughness PVC compound, stable insulation performance

Shielding Layer: Aluminum foil full coverage + tinned copper braid shielding, excellent EMC anti-interference performance

Outer Sheath: Industrial grade flexible PVC sheath, abrasion resistant, flame retardant and anti-aging

Structure Feature: Compact laying, low friction, resistant to repeated torsion and bending

Standard Technical Parameters

- Rated Voltage: 300/500V

- Test Voltage: 2000V

- Bending Lifespan: Up to 5 million dynamic bending cycles (medium-duty industrial grade)

- Temperature Range: Dynamic -5℃ ~ +70℃; Static -15℃ ~ +80℃

- Min Bending Radius: Dynamic 8×OD; Static 6×OD

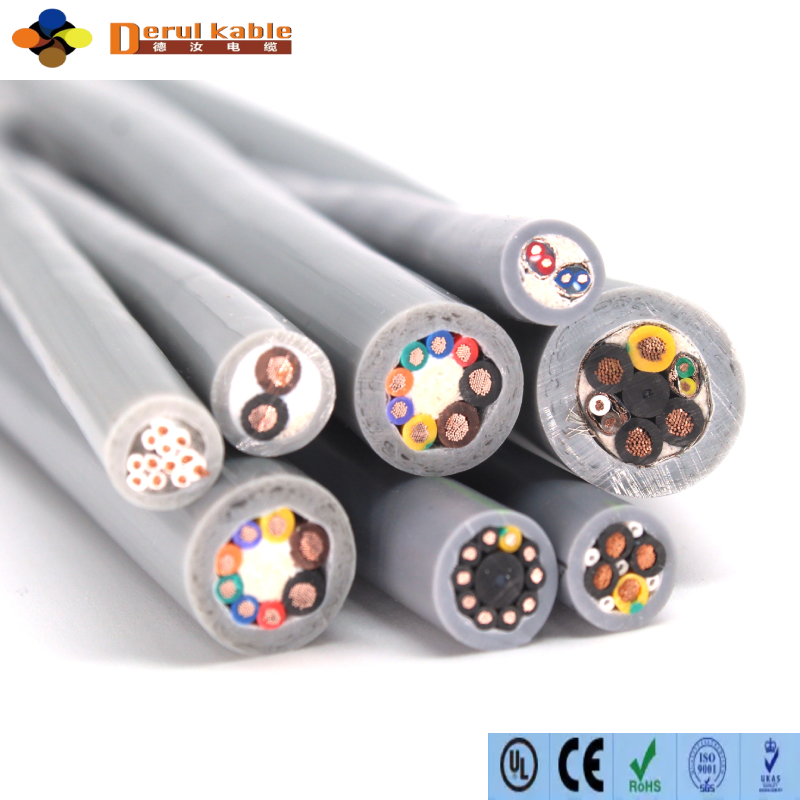

- Structure: 2/3/4/5/6/7/8/12/16/20/24 multi-core customizable

- Certification: CE, RoHS, Reach, ISO9001

Application Scenarios

- Automation Control Systems: Automated assembly lines, conveyor equipment, moving sensor signal wiring

- Standard CNC Machine Tools: Lathes, milling machines, machining center auxiliary signal control lines

- Packaging & Printing Machinery: Medium-speed packaging machines, printing equipment signal transmission

- Logistics Automation: Sorting equipment, light-duty mobile trolley signal cables

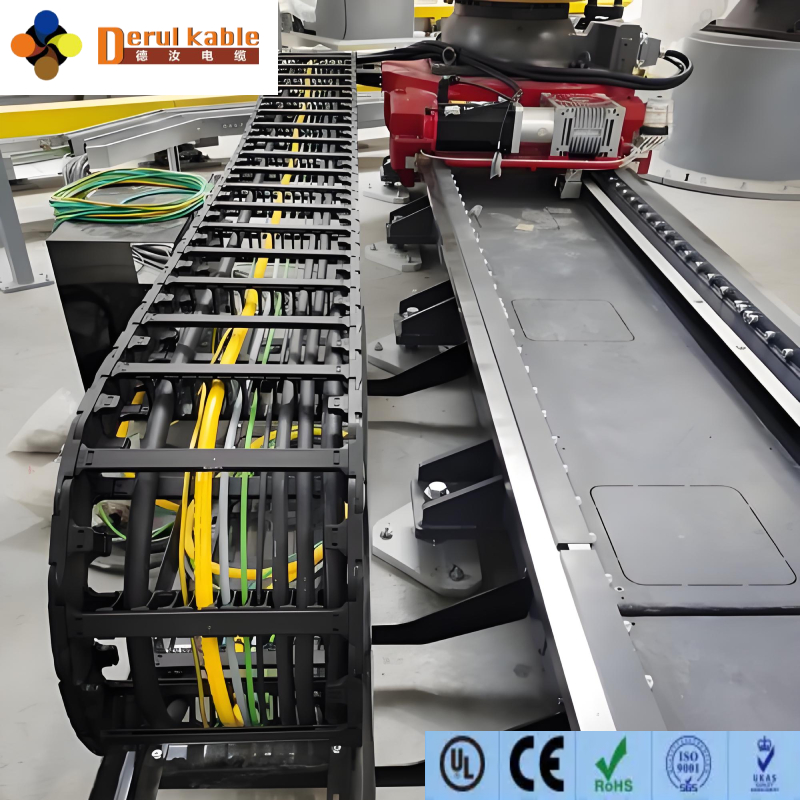

- General Industrial Moving Equipment: Reciprocating mechanical arms, small gantry moving control systems

PVC Shielded vs PUR Shielded Drag Chain Cable

FAQ

Q1: What is PVC shielded drag chain cable used for?

A1: It is a medium-flex continuous motion control cable with full shielding, mainly used for signal transmission of moving automation equipment, effectively preventing electromagnetic interference and ensuring stable control signal output.

Q2: How many bending cycles can PVC shielded towline cable support?

A2: Standard industrial grade reaches up to 5 million bending cycles, suitable for most medium-frequency reciprocating drag chain working conditions.

Q3: Is PVC shielded drag chain cable better than PUR cable?

A3: Not exactly. PVC version is more cost-effective for standard indoor environments; PUR version has better oil resistance, low temperature performance and longer lifespan for harsh high-frequency motion scenarios.

Q4: Why use shielded drag chain cable for automation?

A4: Industrial workshops have strong electromagnetic interference from inverters and servo motors. The shielding structure stabilizes weak control signals and avoids equipment misoperation or alarm faults.

Q5: Can you supply custom core count and length?

A5: Yes. We support multi-core customization, arbitrary length cutting and pre-assembled connectors, with free samples and factory wholesale price.
