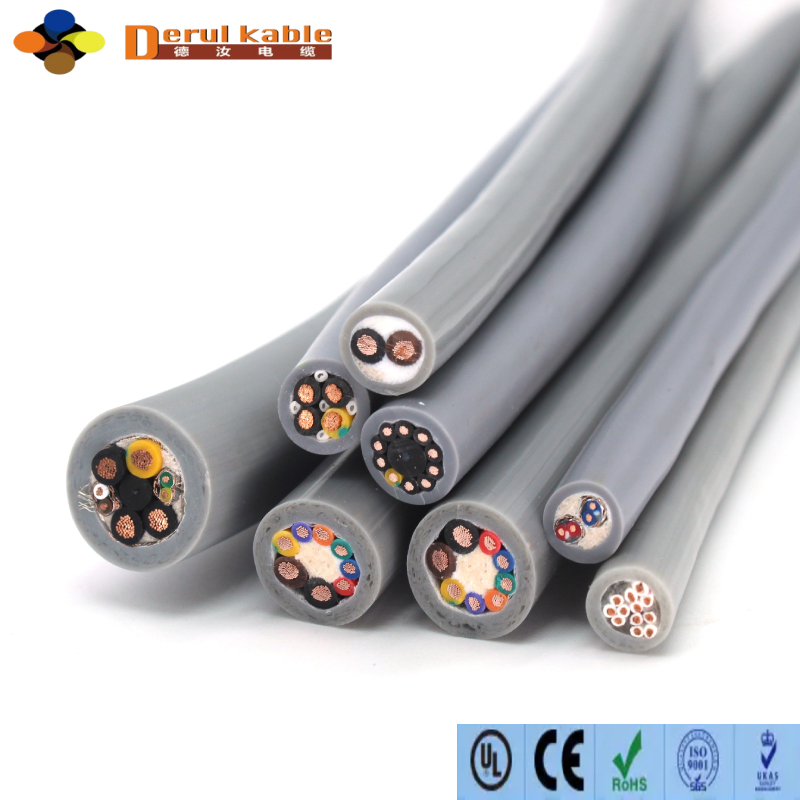

Drag Chain Cable
High Flexible Shielded Drag Chain Cable -EMC High Flex Manufacturer
Specification
| Basic Structure | Conductor+Insulation+Jacket+Hose |
| Conductor | Plain Copper/ Tinned Copper |
| Insulation | PE |
| Braid | Kevlar/ Plain Copper/ Tinned Copper |
| Jacket | PUR/TPE/PCP |
INTRODUCTION
Our high flexible shielded drag chain cable is heavy-duty dynamic wiring designed for long-term reciprocating movement inside energy chains, robotic arms and moving machine frames. Integrated full EMC shielding eliminates electromagnetic interference from inverters, power cables and motors, while ultra-fine stranded conductors deliver outstanding bending endurance far above ordinary flex cables. Unlike basic unshielded drag wires, this shielded variant guarantees stable power and signal transmission for precision automation equipment. Manufactured directly at our Shanghai production plant, we supply customized and bulk high flexible shielded drag chain cables to factories across Europe, North America and Southeast Asia with stable lead times.

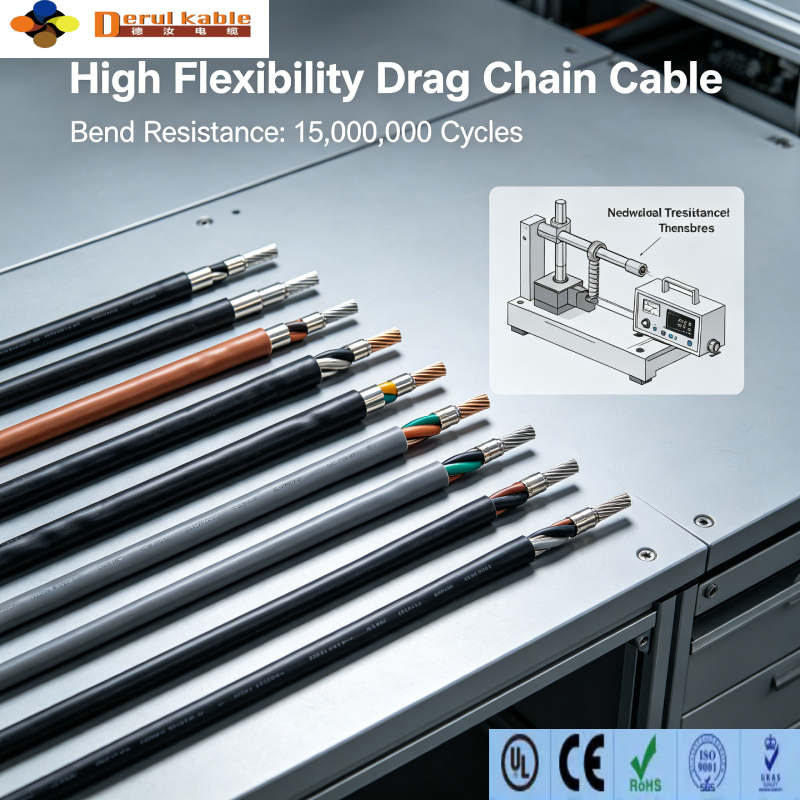

Ultra-high flex durability: IEC Class 6 extra-fine bare/tinned copper conductors, withstand 10,000,000–15,000,000 reciprocating bending cycles

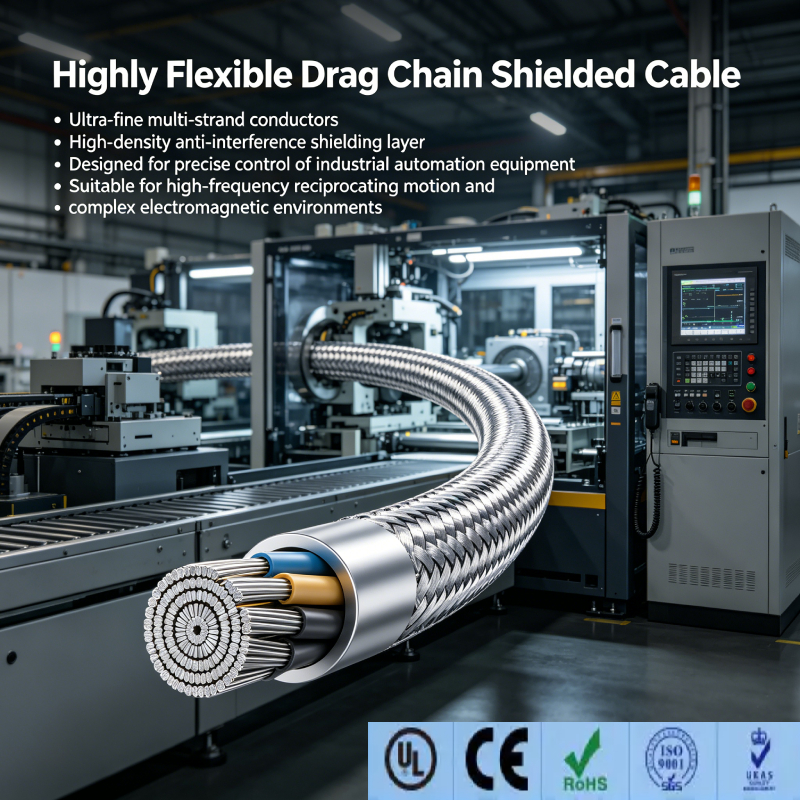

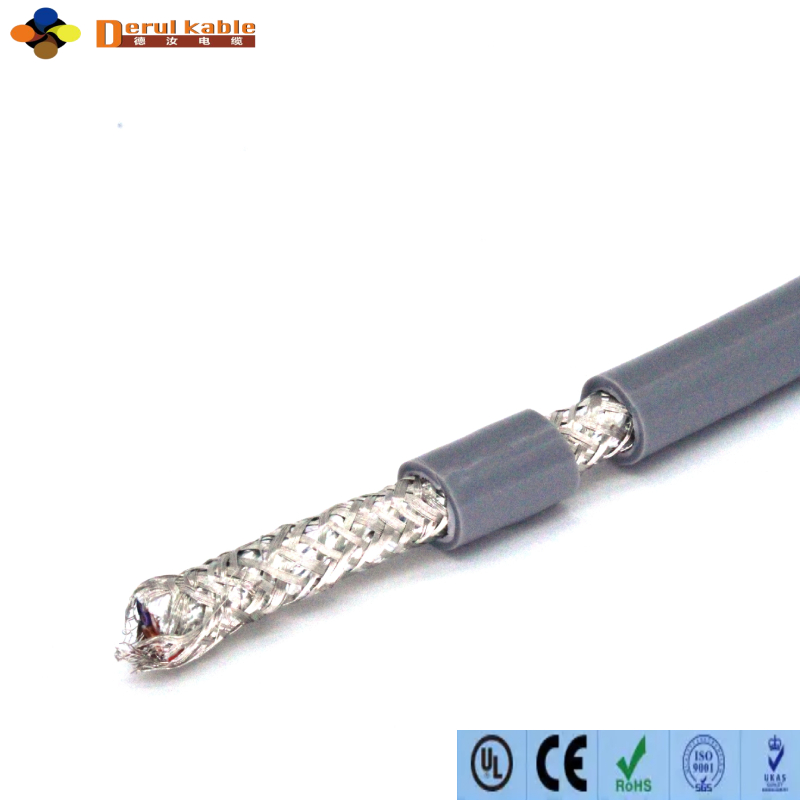

Full EMC anti-interference shielding: High-density tinned copper braid shield with high coverage rate, blocks crosstalk and industrial noise for precise signal & power
Multiple jacket options: Abrasion/oil-resistant PUR for harsh machining workshops; cost-effective flame-retardant PVC for standard dry production lines
Stable anti-twist internal structure: Balanced core layout prevents cable distortion, core fatigue breakage during high-speed drag chain operation
Wide temperature adaptability: Standard range -40℃ ~ +80℃, low-temperature customized versions available for cold workshop environments
Global export certifications: CE, RoHS, REACH compliant, meets EU, US and international industrial wiring standards
Full custom support: Adjust core count, AWG gauge, shield thickness, cable length and surface printing for individual project demands

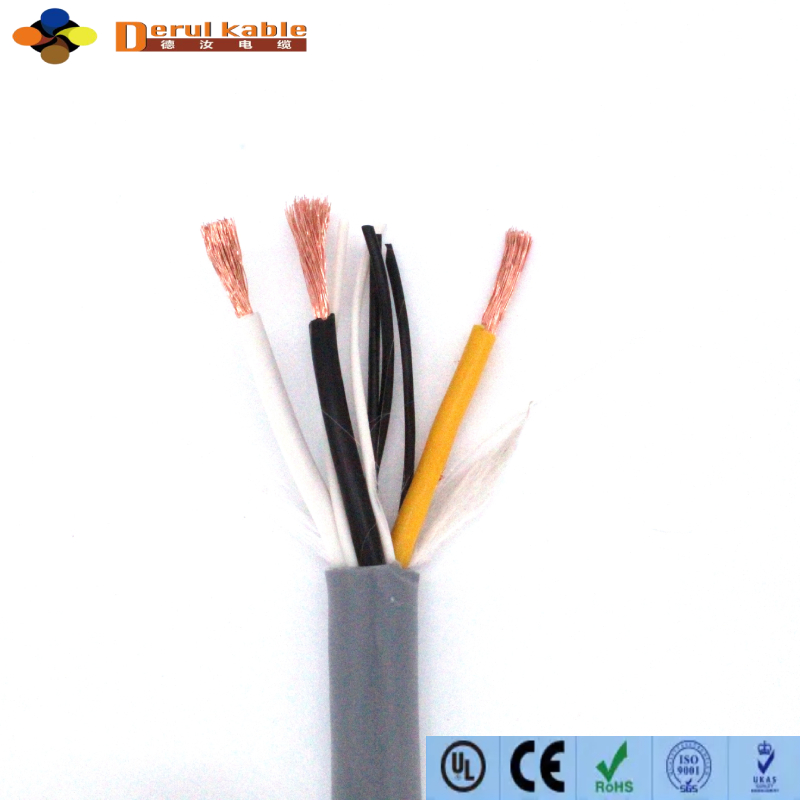

Internal Cable Construction
6-axis industrial robotic arms, handling & welding robot moving wiring (widely adopted by German, Polish automation factories)
CNC machining centers, laser cutters, lathes equipped with energy chain drag chain systems
High-speed packaging, printing, textile and injection molding automated production lines
Automated warehouse sorting conveyors, mobile logistics handling equipment
Precision servo control systems, testing instruments and movable assembly stations
Why choose high flexible shielded drag chain cable over ordinary unshielded flex cable?
Unshielded cables suffer severe signal interference near motors and drives; the built-in EMC shield of our high flexible drag chain cable stabilizes power and signal, preventing equipment malfunction and precision loss during dynamic operation.
How many bending cycles can this shielded high flex drag chain cable reach?
Standard model achieves 10 million bend cycles; upgraded heavy-duty PUR versions support up to 15 million reciprocating movements for high-speed continuous operation.
Can this cable work in oily machine tool environments?
Select PUR outer sheath models for excellent resistance to cutting coolant, machine oil and hydrolysis; PVC variants suit dry, non-oily standard production lines.
Do your cables pass European import certification standards?
All high flexible shielded drag chain cables hold complete CE, RoHS, REACH certification documents, ready for customs clearance in EU, USA and most global industrial markets.
Can you tailor specifications for unique automation equipment?
We customize core combinations, wire gauges, shielding grades and sheath materials to fit custom drag chain sizes, bending radii and working conditions.
About Us
ADVANTAGES
Direct factory sales without middle agents, competitive wholesale pricing for distributors and engineering contractors worldwide
Independent in-house testing lab: Every batch completes flex cycle aging, oil immersion, shielding efficiency and electrical safety tests before shipment
Flexible order volume: Small MOQ trial sample orders and full container large bulk export orders are both acceptable
Mature cross-border logistics network: Door-to-door delivery solutions for EU, USA, Australia and Southeast Asia
Professional electrical engineering team provides free parameter matching, wiring scheme consultation and technical support
24/7 WhatsApp & email customer service, fast quotation and downloadable official technical datasheets
CUSTOMIZATION CAPABILITY

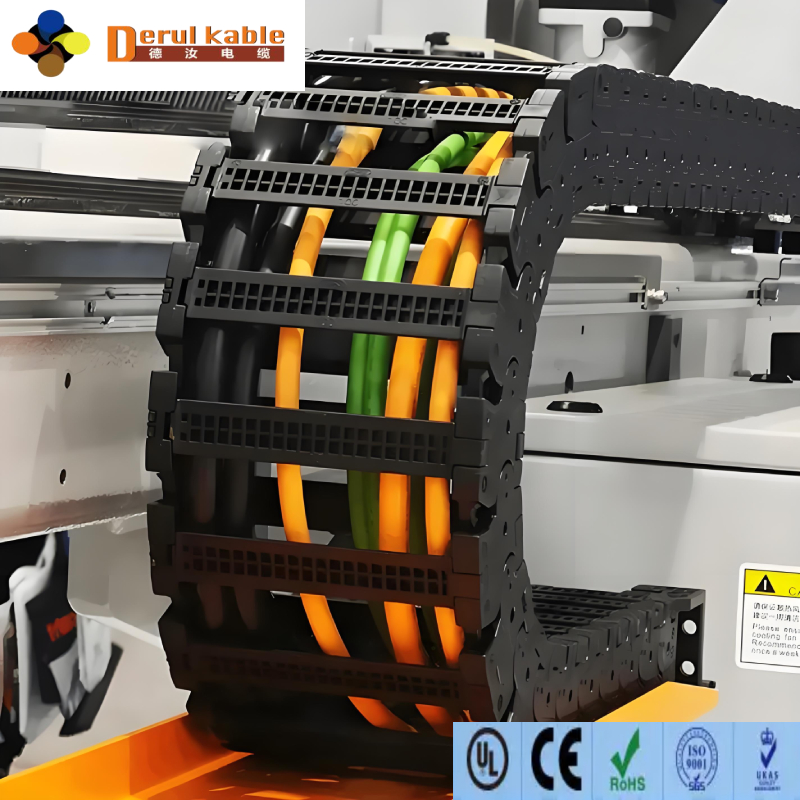

We are your reliable partner in special cable customization
Considering different working conditions and clients' request, Derul's cable product can be highly customized.
To best meet the demands in our clients' practical application, we can offer highly customized solution and quality cable product, to ensure the cable is suitable for our clients.
We welcome new clients to send us specific requirement. Our teams will evaluate it and offer unique technical datasheet and technical drawings to you.
Our competitive price which most clients could afford will be another key to our successful and efficient cooperation.
As the original manufacturer, we provide quick response to any of our clients' inquiry. We have close interconnection between the workshop, engineer and sales person.
FAQ
Q: Is Derul Cable the original manufacturer?
A: Derul Cable is a special cable manufacturer. Our factory is based in Shanghai.
Q: Is the price negotiable?
A: Yes, the price is negotiable. Our price is also flexible due to several factors including purchase quantity.
Q: What is the regular MOQ for your cable?
A: Any quantity is okay to purchase for product at stock. For product with no stock, its MOQ is usually 100-200 meters per type.
Q: How can I get sample?
A: Usually you only need to pay the express freight, and after your confirmation of the product dimension and structure, we can arrange the sample and send it directly to you.
Q: Is OEM or ODM service available?
A: OEM and ODM services are both available. You can provide us with your requirement for the product and we will evaluate it to push forward.
Q: What is the regular production time?
A: For regular quantity, it usually costs about 15-25 days to produce.
