Specification

Basic Structure	Conductor+Insulation+Jacket+Hose
Conductor	Plain Copper/ Tinned Copper
Insulation	PE
Braid	Kevlar/ Plain Copper/ Tinned Copper
Jacket	PUR/TPE/PCP

Inquire Now Next Product

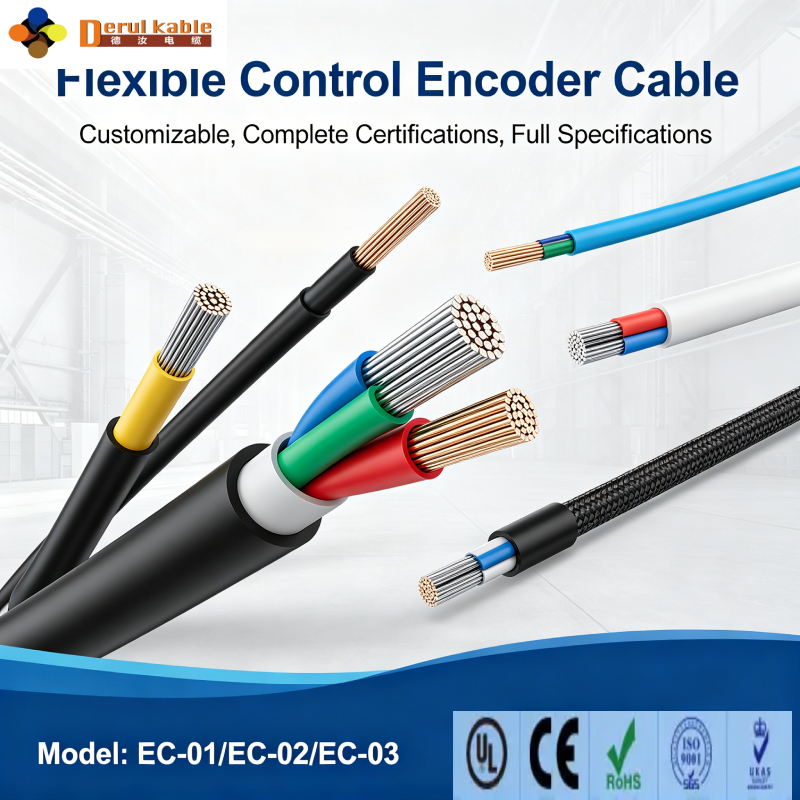

INTRODUCTION

High Flexible Encoder Control Cable is a professional low-capacitance signal transmission cable specially developed for encoder position feedback and motion control systems. Different from ordinary power cables, this high-flex signal cable adopts precise twisted pair structure and full EMC shielding design to ensure zero-delay, lossless transmission of pulse signals, position data and speed feedback data. Equipped with VDE Class 6 ultra-fine stranded copper conductors and flexible industrial sheath, it supports long-term reciprocating bending in drag chains, effectively solving signal drift, data loss and equipment alarm caused by frequent movement and electromagnetic interference. Widely used for servo encoders, incremental encoders and absolute encoder signal connection in industrial automation equipment.

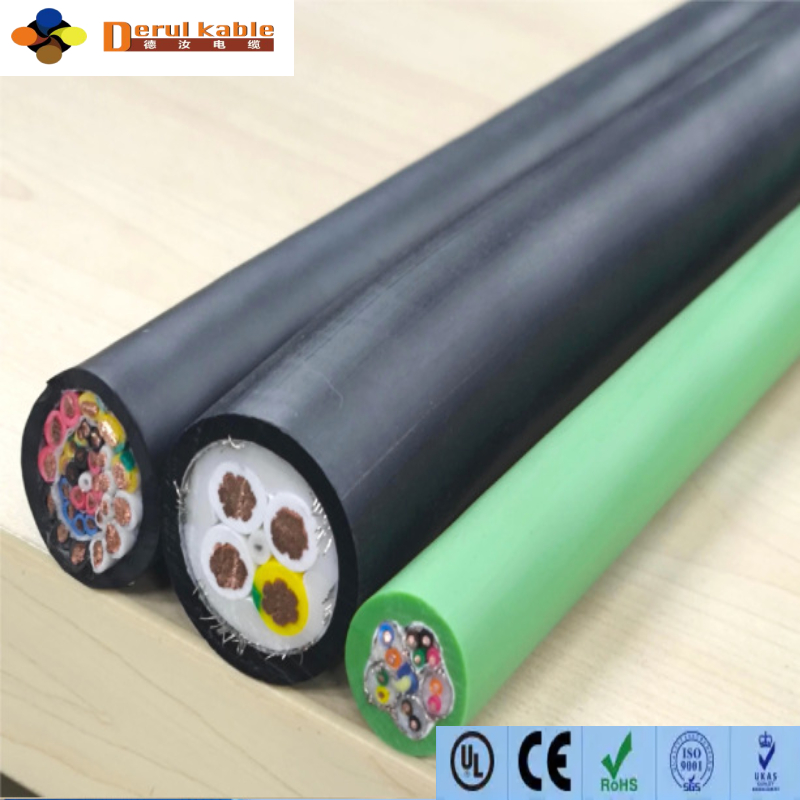

Cable Construction & Technical Specifications

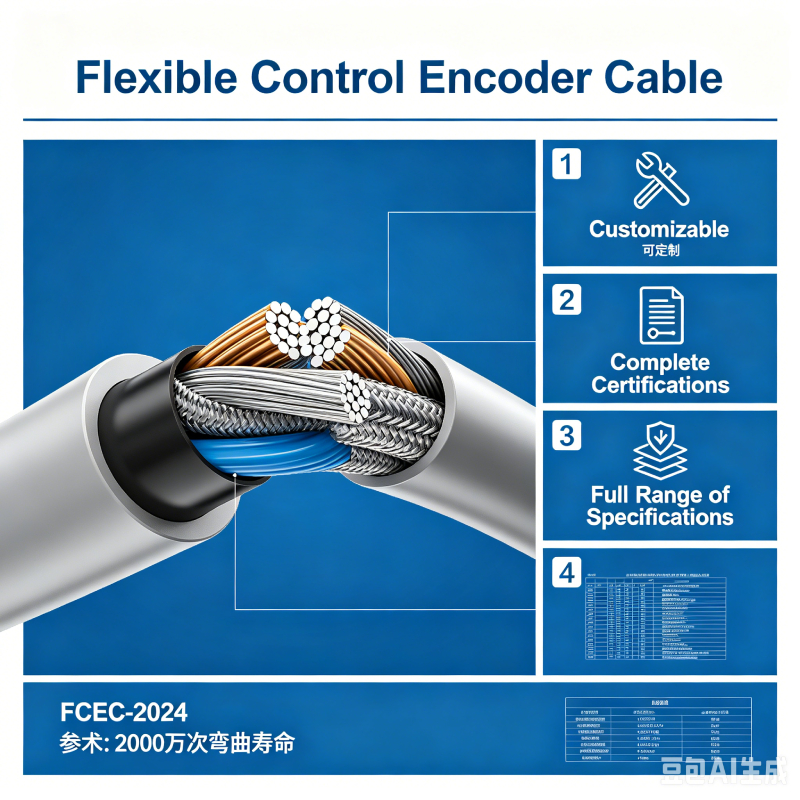

Internal Structure

Conductor: VDE 0295 Class 6 extra-fine bare copper stranded wire, ultra-flexible, anti-fatigue, no breakage during dynamic bending

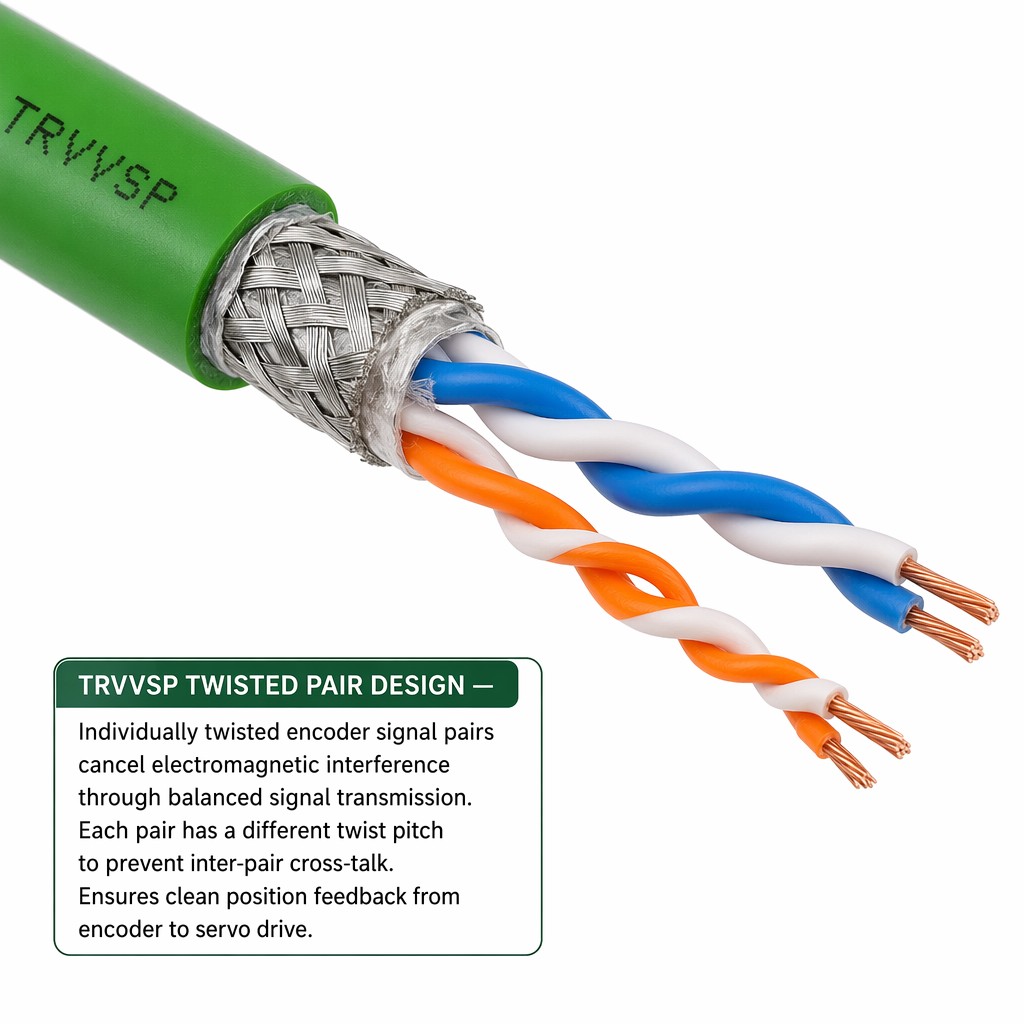

Signal Pairs: Precision balanced twisted pair layout, stable impedance, low capacitance, reducing high-frequency signal attenuation

Insulation: High-performance low-capacitance insulation material, ensuring high-precision signal transmission

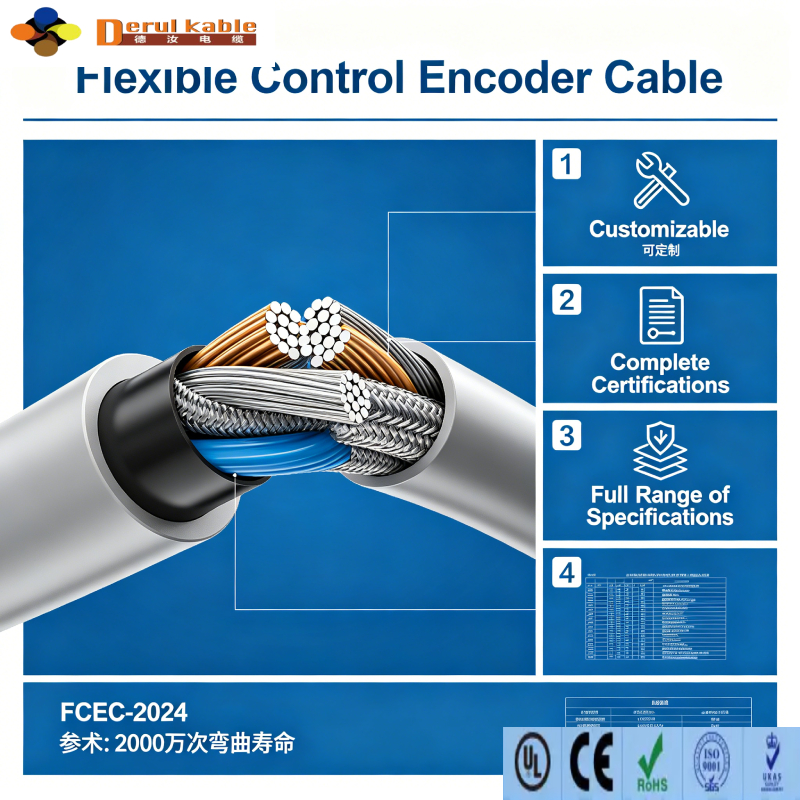

Shielding Layer: Aluminum foil full coverage + tinned copper braid double shielding, effectively isolating EMI/RFI electromagnetic interference

Outer Sheath: High flexible industrial PVC / optional PUR sheath, abrasion resistant and anti-aging

Standard Technical Parameters

Rated Voltage: 300V (signal dedicated low voltage)

Test Voltage: 1500V

Bending Lifespan: 5–12 million dynamic bending cycles (optional PVC/PUR grade)

emperature Range: Dynamic -20℃ ~ +80℃; Static -30℃ ~ +85℃

Minimum Bending Radius: Dynamic 7×OD; Static 5×OD

Characteristic: Low capacitance, low impedance, anti-interference, signal stability

Certification: CE, RoHS, Reach, ISO9001

Industrial Application Scenarios

CNC Machine Tools: CNC lathes, milling machines, machining centers encoder position feedback wiring

Industrial Robotics: 6-axis robots, handling robots, rotating and moving axis encoder signal lines

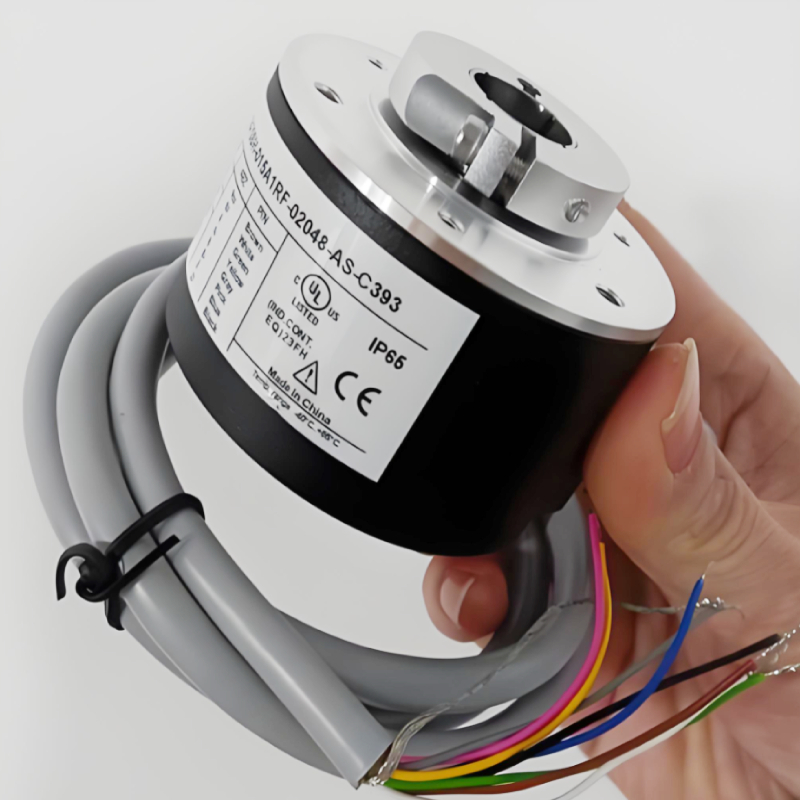

Servo Motion Control Systems: Incremental and absolute encoder signal connection for servo motors

Packaging & Printing Machinery: High-speed reciprocating equipment precise positioning signal transmission

Automated Production Lines: Moving gantries, sliding tables, mobile sensor encoder cables

Encoder Control Cable vs Ordinary Control Cable

Parameter	High Flexible Encoder Control Cable	Ordinary Control Cable
Internal Structure	Precision twisted pair, low capacitance	Ordinary parallel stranding, high capacitance
Anti-Interference Ability	Double shielding, strong EMC performance	Weak shielding, easy signal crosstalk
Signal Stability	No delay, no drift, high precision	Easy signal loss and distortion
Dynamic Bending Suitability	Drag chain grade for continuous movement	Only for static fixed wiring
Main Usage	Encoder feedback & precision motion control	General switch & low-precision control

FAQ

Q1: What is a flexible encoder control cable used for?

A1: It is a dedicated high-precision signal cable for servo encoders, used to transmit speed, position and pulse feedback signals between encoders and drives, ensuring accurate closed-loop motion control for automated equipment.

Q2: Why cannot use ordinary control cable for encoder signal?

A2: Ordinary cables have high capacitance and no twisted pair balance structure, which easily cause signal delay, crosstalk and position drift, resulting in servo alarms and machining errors.

Q3: Does encoder control cable need shielding?

A3: Yes. Encoder signals are weak low-voltage pulse signals. Double shielding effectively filters EMI interference from power cables and inverters to guarantee stable feedback data.

Q4: Is this encoder cable suitable for drag chain installation?

A4: Yes. Adopting VDE Class 6 high-flex structure, it supports millions of repeated bending cycles, specially designed for moving drag chain and robotic axis applications.

Q5: Do you support custom encoder cable specifications?

A5: We support custom twisted pair counts, wire gauge, cable length, PUR/PVC sheath and connector assembly, with free testing samples and factory wholesale price.

Factory Custom Service & Strength

Professional manufacturer of high-flex encoder signal and control cables

Custom twisted pair structure, core count, wire cross-section and length

PVC / PUR dual sheath options for different working conditions

Pre-assembled connectors, terminal crimping and cable marking service

Complete certification documents, 12-month quality warranty

About Us

ADVANTAGES

Precision Twisted Pair Signal StructureBalanced pair design greatly reduces crosstalk and signal attenuation, ensuring accurate feedback of encoder A/B/Z pulse signals and absolute position data, no positioning deviation during high-speed equipment operation.
Double EMC Anti-Interference ShieldingBlocks electromagnetic interference from inverters, servo power cables and motors, avoiding common faults such as encoder signal loss, servo alarm and equipment stop caused by industrial field noise.
High Flexible Drag Chain Grade PerformanceUltra-fine stranded conductor structure resists metal fatigue, adapts to high-frequency reciprocating movement of robotic arms and machine tool axes, and maintains stable electrical performance for a long time.
Low Capacitance Signal TransmissionProfessional low-capacitance design supports long-distance signal transmission, effectively reducing signal delay and distortion, suitable for high-precision motion control scenarios.
Two-Grade Material MatchingPVC version for cost-effective standard indoor scenarios; PUR version for oil-resistant, low-temperature and high-cycle heavy-duty working conditions, covering all encoder wiring demands.

CUSTOMIZATION CAPABILITY

We are your reliable partner in special cable customization

Considering different working conditions and clients' request, Derul's cable product can be highly customized.

To best meet the demands in our clients' practical application, we can offer highly customized solution and quality cable product, to ensure the cable is suitable for our clients.

We welcome new clients to send us specific requirement. Our teams will evaluate it and offer unique technical datasheet and technical drawings to you.

Our competitive price which most clients could afford will be another key to our successful and efficient cooperation.

As the original manufacturer, we provide quick response to any of our clients' inquiry. We have close interconnection between the workshop, engineer and sales person.
