Diver Umbilical | Commercial Surface-Supplied Diving Umbilical | Shanghai Deru Manufacturer
Specification
| Basic Structure | Conductor+Insulation+Jacket+Hose |
| Conductor | Plain Copper/ Tinned Copper |
| Insulation | PE |
| Braid | Kevlar/ Plain Copper/ Tinned Copper |
| Jacket | PUR/TPE/PCP |
INTRODUCTION
Diver's Umbilical Cable | Commercial Surface Supplied Diving Umbilical
Product Overview
A diver’s umbilical is the critical lifeline for surface supplied commercial divers. The Diver's Umbilical Cable integrates breathing air hose, pneumofathometer line, communication cable, optional video coax and power conductors inside one helically bundled assembly. Also known as surface supplied diving umbilical, this hybrid cable continuously connects divers with topside dive control stations during all underwater missions.
Derul Cable designs and manufactures high-performance commercial diving umbilicals for shallow-water air diving and saturation diving operations. We provide customized 3 part diving umbilical and 4 part diver umbilical configurations to meet global diving contractor standards.

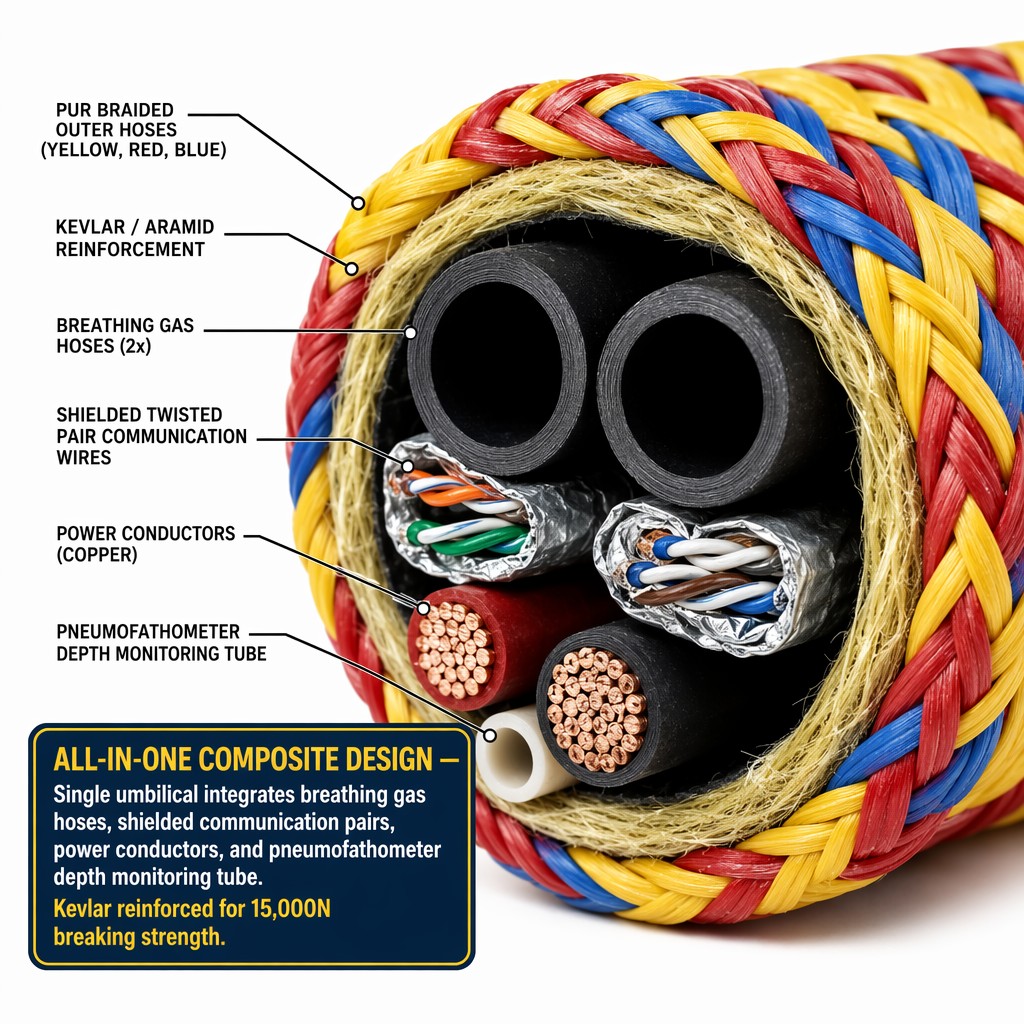

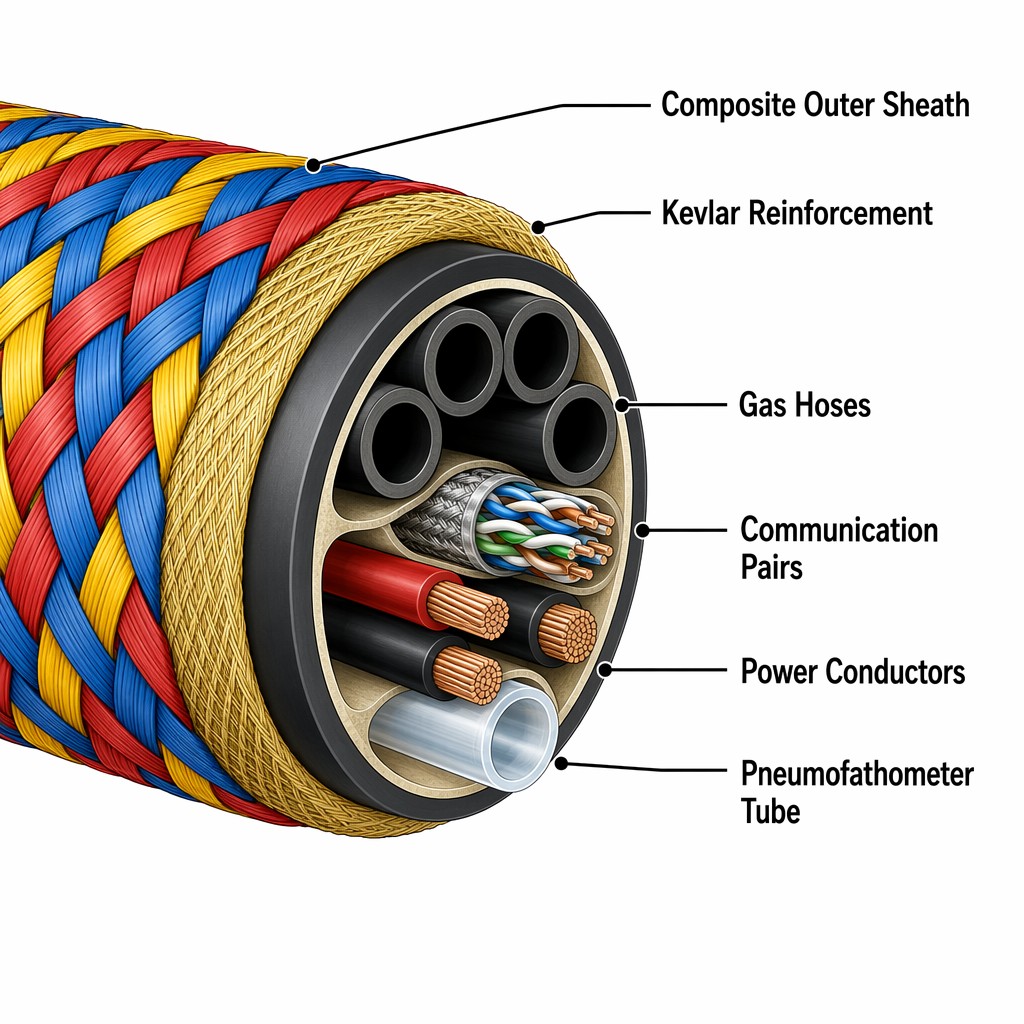

Construction Structure

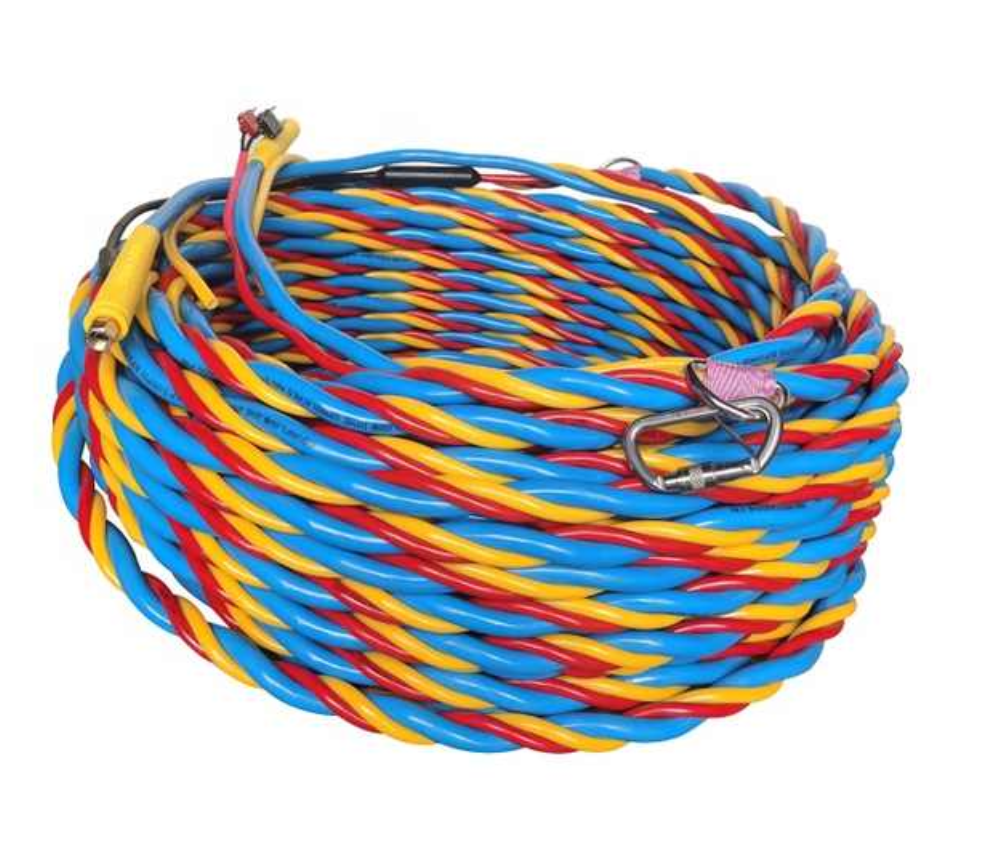

Our surface supplied diving umbilical adopts spiral twisted layout, the industry standard construction for diving lifeline:

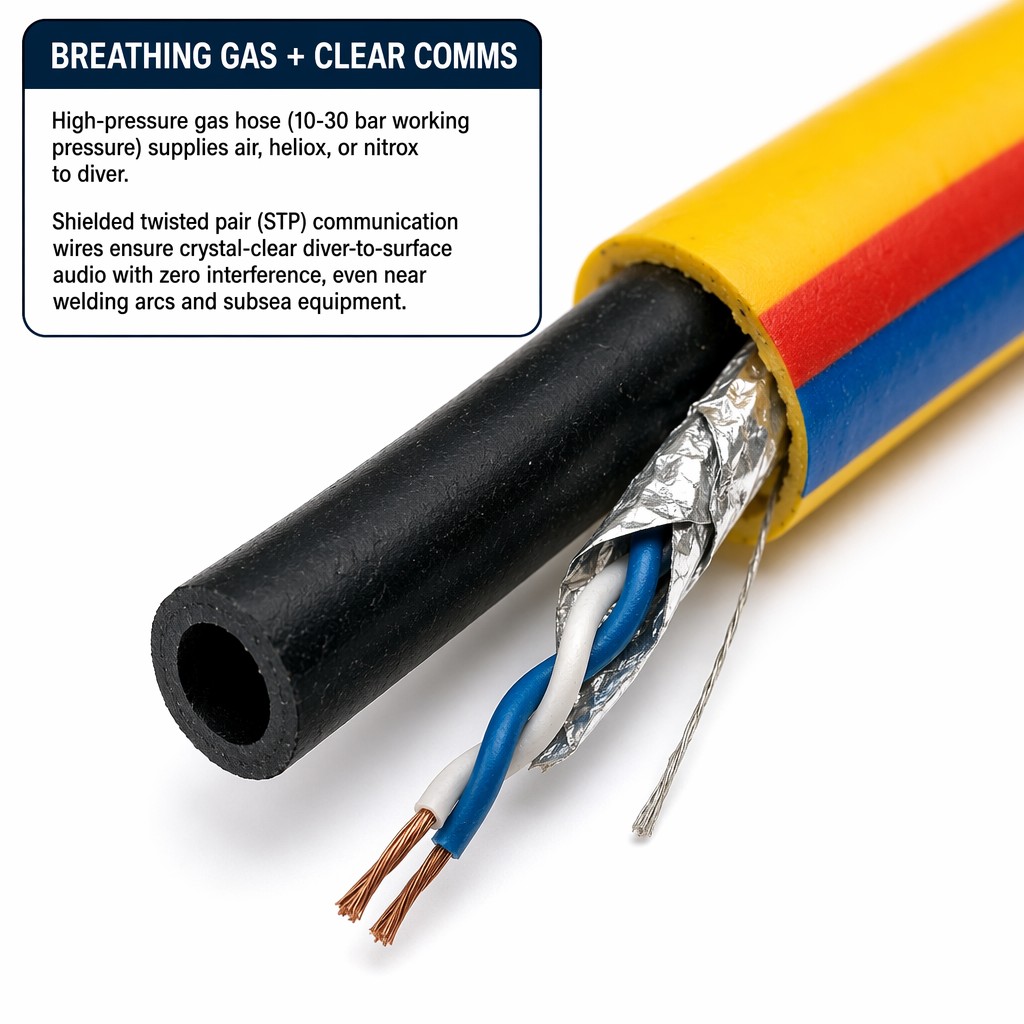

Air supply hose: High-pressure PU hose for diver breathing gas transmission
Pneumo hose (pneumofathometer): For real-time depth monitoring
Shielded communication cable: Clear audio communication between diver and surface supervisor
Optional components: Coaxial video cable, power wires, hot water heating line

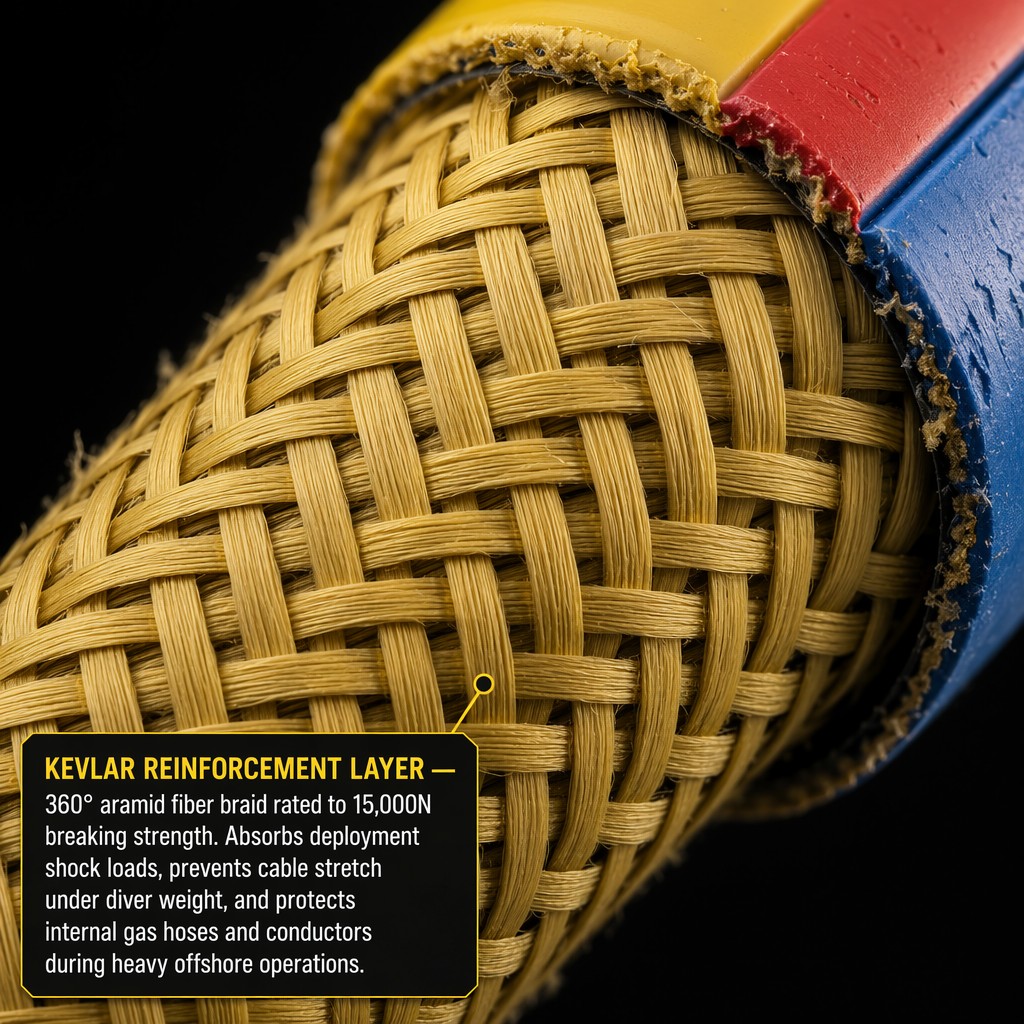

High tensile strength member: Kevlar / polyester fiber to bear pulling load, avoid tension damage on hoses and wires
Outer PUR/TPU jacket: Polyether polyurethane sheath, anti-abrasion, saltwater corrosion resistant

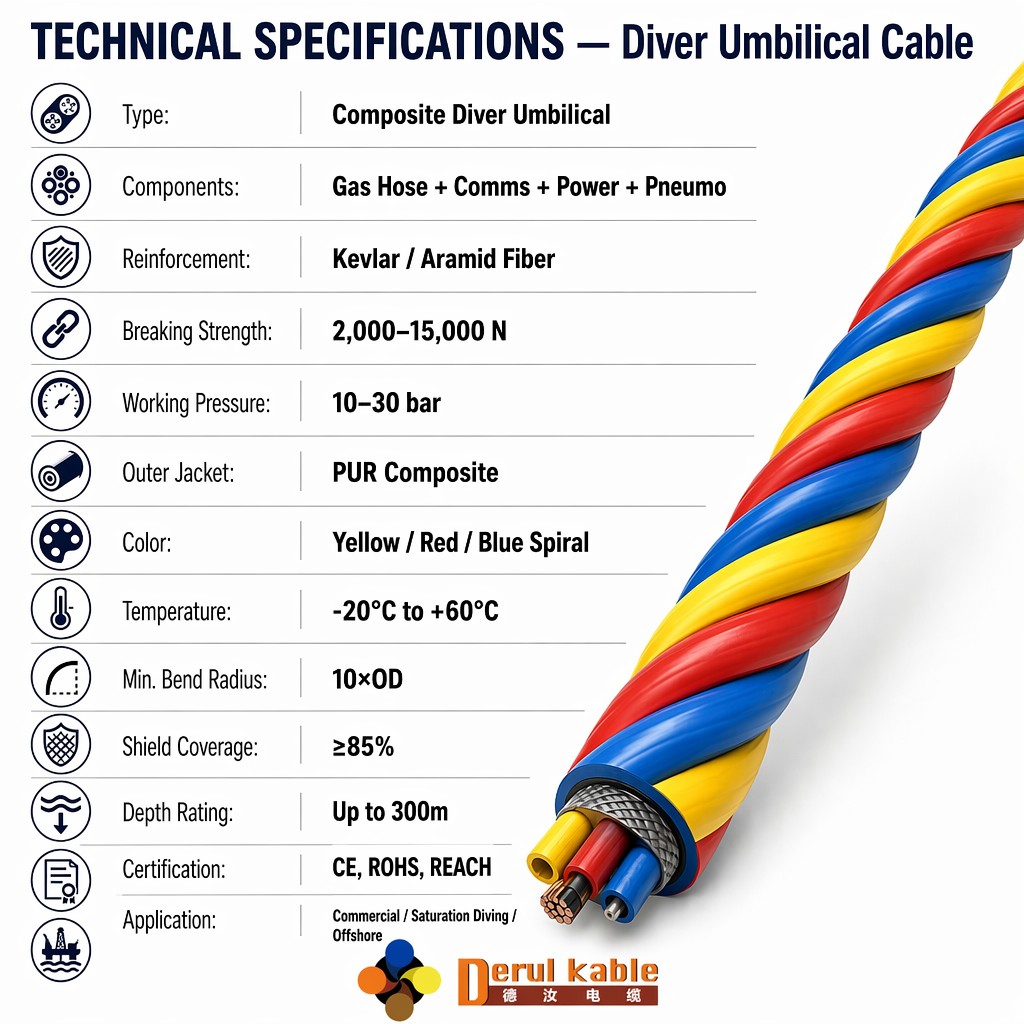

Technical Specifications
Working temperature: -25℃ ~ +60℃
Maximum operating depth: Customized up to 300m and deeper
Jacket Material: Imported PUR / TPU polyurethane
Conductor: Tinned copper for anti-corrosion
Standard Types: 3-element diving umbilical, 4-element diving umbilical
Buoyancy: Adjustable neutrally buoyant design on request
Waterproof performance: Continuous submerged service for marine environments
Application Scenarios
Our commercial surface supplied diving umbilical widely serves global underwater engineering projects:
Offshore commercial diving & ship hull maintenance
Harbour, dock and underwater pipeline inspection
Salvage, search & rescue underwater operations
Aquaculture underwater maintenance
Saturation diving & diver excursion missions
Underwater construction, bridge foundation inspection
Marine environmental survey & scientific underwater research
Why Choose Derul Cable Diving Umbilical
As a professional manufacturer of subsea and underwater cables, Derul Cable focuses on custom diver’s umbilical cable for worldwide diving operators.
✅ In-house engineering support for bespoke umbilical design
✅ Strict pressure, tensile and water resistance testing before delivery
✅ Complete technical datasheets and test reports available
✅ Short lead time for standard & customized diving umbilical
✅ Professional packaging for marine long-distance transportation
✅ One-stop solution: Cable + custom underwater connector assembly
Custom Service
We accept full customization for your surface supplied diving project:
Adjust combination of air hose, pneumo tube, communication, video and power cables
Change outer diameter, total length, sheath color
Configure strength member load capacity
Pre-terminate with diving standard waterproof connectors
Inquiry
If you need quotation or technical drawing of diver's umbilical cable / commercial surface supplied diving umbilical, please contact our engineering team. Send your configuration requirements, working depth and length to get the best solution.
ADVANTAGES
Built for surface supplied diving systems, compliant with commercial marine diving requirements
Available in 3 part diving umbilical & 4 part diver umbilical customizable layout
Excellent kink resistance & high flexibility, reduces diver movement resistance underwater

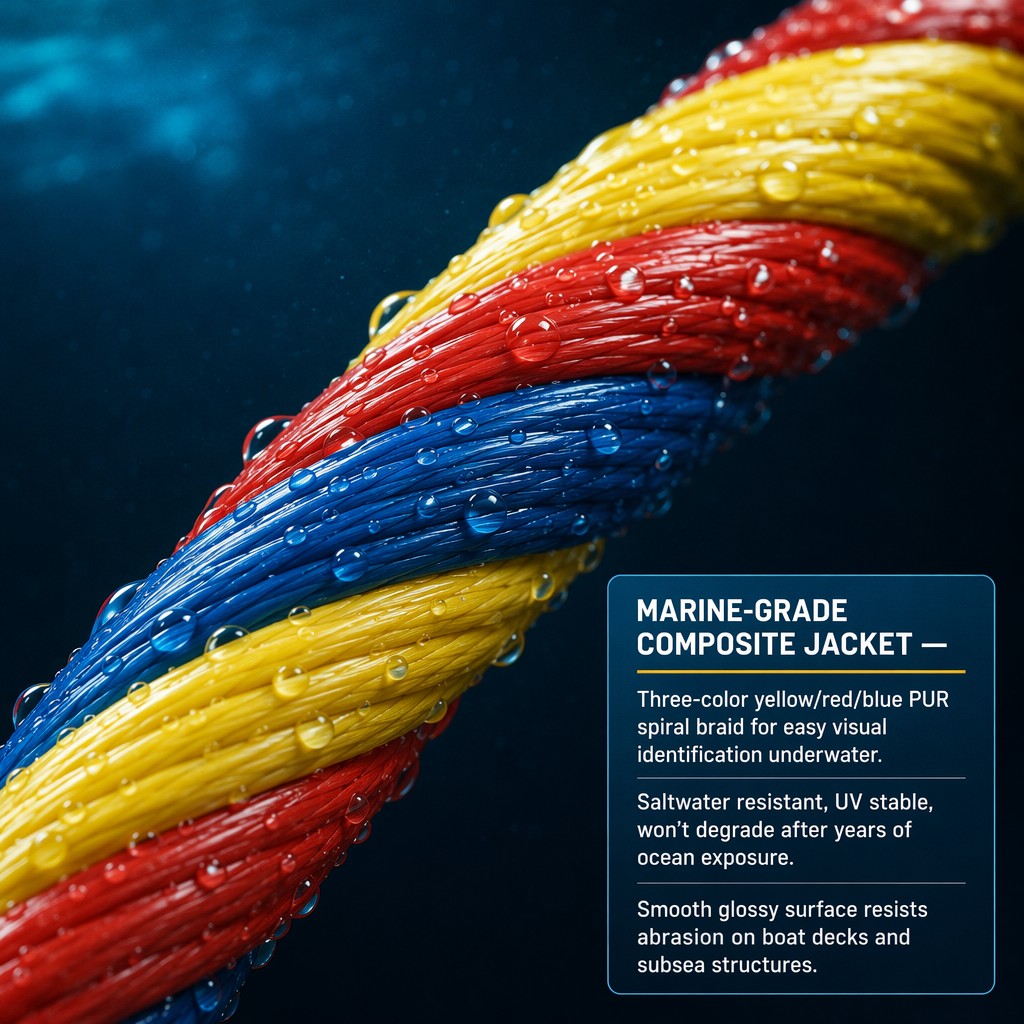

PUR polyether outer sheath: resistant to seawater, UV, oil, abrasion and hydrolysis
High tensile load-bearing structure, suitable for long-distance underwater deployment
Clean hose material, guarantees qualified breathing air quality
Multiple color options (red, yellow, blue) for high visibility in turbid seawater
Custom length, internal wiring combination and subsea termination service
Support diver excursion umbilical for saturation diving systems
FAQ
Q: Is Derul Cable the original manufacturer?
A: Derul Cable is a special cable manufacturer. Our factory is based in Shanghai.
Q: Is the price negotiable?
A: Yes, the price is negotiable. Our price is also flexible due to several factors including purchase quantity.
Q: What is the regular MOQ for your cable?
A: Any quantity is okay to purchase for product at stock. For product with no stock, its MOQ is usually 100-200 meters per type.
Q: How can I get sample?
A: Usually you only need to pay the express freight, and after your confirmation of the product dimension and structure, we can arrange the sample and send it directly to you.
Q: Is OEM or ODM service available?
A: OEM and ODM services are both available. You can provide us with your requirement for the product and we will evaluate it to push forward.
Q: What is the regular production time?
A: For regular quantity, it usually costs about 15-25 days to produce.
