Low-Voltage Cable for Port Machinery Cable Reels -Factory-Direct Sales of Port Machinery Reel Cables Factory

Low-Voltage Cable for Port Machinery Cable Reels -Factory-Direct Sales of Port Machinery Reel Cables

Specification

Basic Structure	Conductor+Insulation+Jacket+Hose
Conductor	Plain Copper/ Tinned Copper
Insulation	PE
Braid	Kevlar/ Plain Copper/ Tinned Copper
Jacket	PUR/TPE/PCP

Inquire Now

INTRODUCTION

Low-Voltage Cable for Port Machinery Cable Reels -Factory-Direct Sales of Port Machinery Reel Cables

Here is the English translation of the product description, formatted for clarity and readability:

Deru Port Machinery Low-Voltage Reel Cable | Application Range

Designed for wear-prone environments, this cable serves as a connection and control cable for port machinery reels, conveyors, and transport machinery. It can also be used as a reel and towing cable in drag chain systems, expanding and retracting along the guidance of support shafts or similar devices. It is suitable for applications involving high mechanical stress, as well as tensile and torsional stress.

Deru Port Machinery Low-Voltage Reel Cable | Performance Requirements

High flexibility and bendability.
High tensile strength, tear resistance, and high wear resistance.
Excellent resistance to oil, abrasion, cold, weathering, acids, alkalis, and UV, making it ideal for outdoor use.

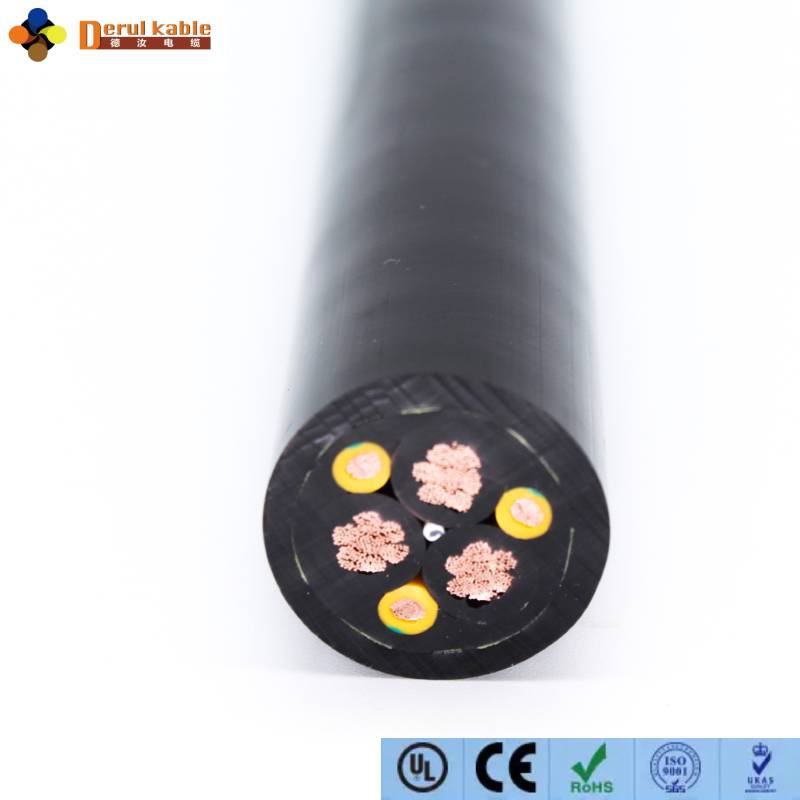

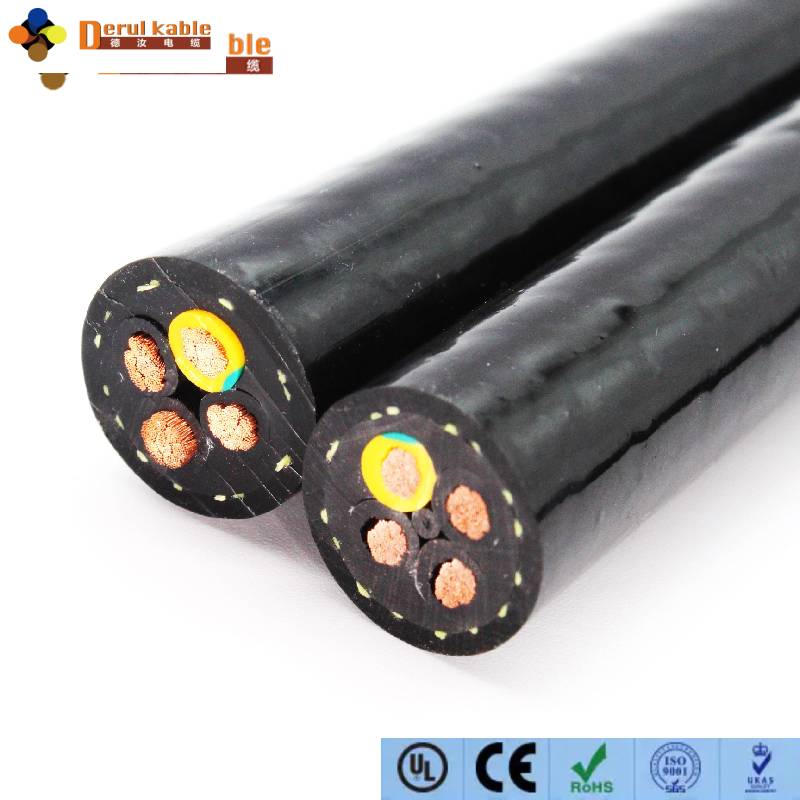

Deru Port Machinery Low-Voltage Reel Cable | Product Construction

Conductor: Multi-strand finely stranded oxygen-free copper wire, complying with VDE 0295 CLASS 5 standards.
Insulation: Special high-strength elastomer insulation.
Color Code: Black insulation with white numbers.
Cabling: Grouped short-pitch twisting, with tensile elements filled in the center or sides.
Inner Sheath: Wear-resistant, oil-resistant Nitrile/PUR inner sheath.
Reinforcement Layer: Braided aramid (Kevlar) reinforcement layer.

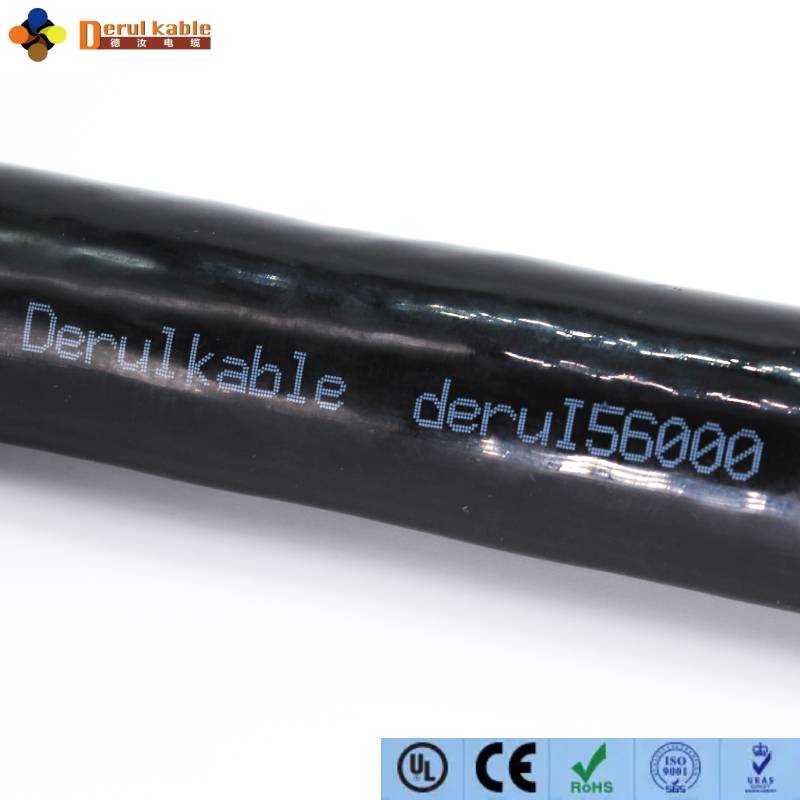

Outer Sheath: Wear-resistant, oil-resistant Polyurethane (PUR) sheath.
Sheath Color: Yellow or Black.

Deru Port Machinery Low-Voltage Reel Cable | Technical Specifications

Rated Voltage: \(U_0/U\) 0.6/1kV
Test Voltage: 3500V / 5 min
Minimum Bending Radius:

Fixed installation: \(6 \times D\) (Cable Outer Diameter)
Mobile installation: \(10 \times D\) (Cable Outer Diameter)

Maximum Tensile Force: 25 N/mm²
Maximum Moving Speed: 180 m/min
Operating Temperature:

Fixed installation: -25°C to +70°C
Mobile installation: -15°C to +70°C

Flame Retardancy: Complies with IEC 60332-1

FAQ

Q1: What voltage grade for standard port reeling cable?

A: Main specification is 0.6/1kV low voltage, customized 300/500V for small dock equipment.

Q2: Why choose PUR sheath for port reel cable?

A: PUR owns superior wear & salt resistance, longer service life than ordinary rubber for seaside port.

Q3: Can we customize port reeling cable per drawing?

A: Yes, OEM core quantity, sectional area, sheath material based on crane parameter.

CTA

If you need low voltage port reeling cable sample test, specification list or bulk quotation for your dock project, leave your terminal equipment parameters to get customized solution.

Classic Case Studies

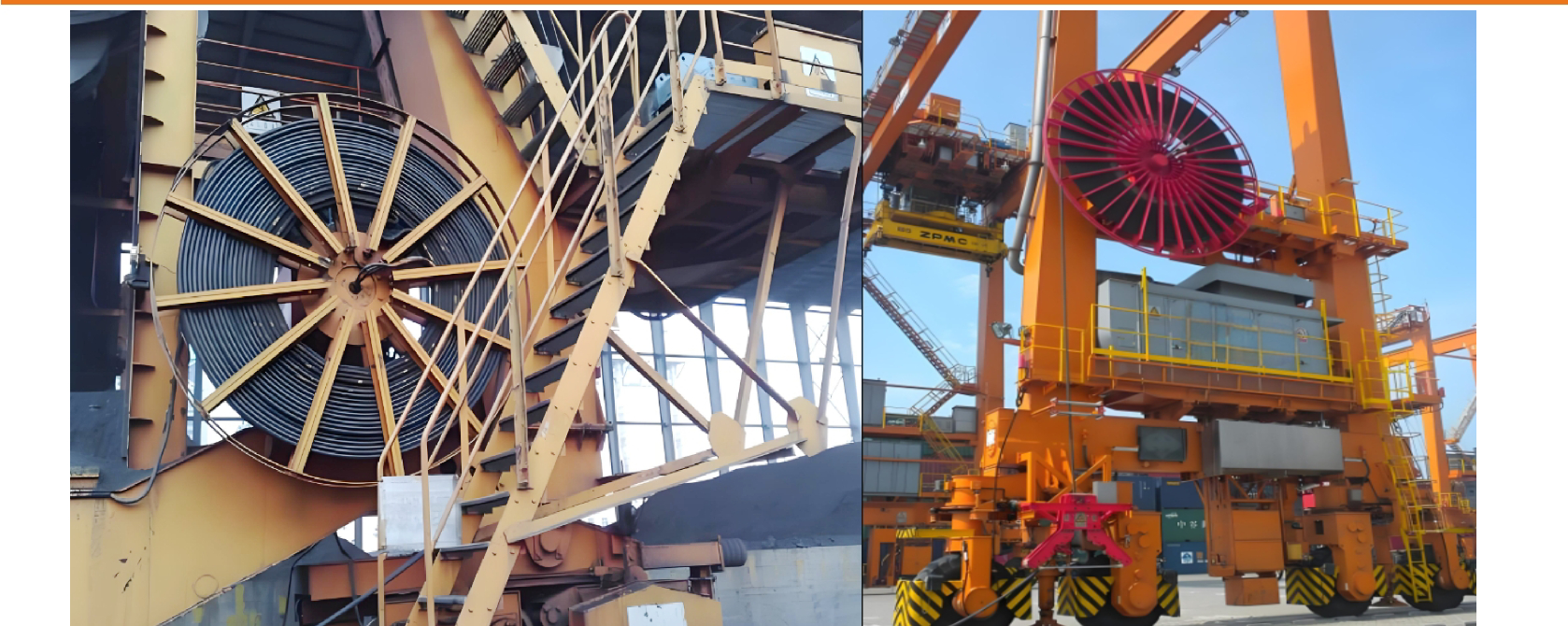

Shanghai Deru Port Machinery: Classic International Port Case Studies for Low-Voltage Cable Reels

ADVANTAGES

Deru Port Machinery Low-Voltage Reel Cable | Product Advantages

Import Replacement: Suitable for cranes and lifting equipment like RTGs and RMGs in ports and docks.
Anti-Twist Design: Features a unique dual-sheath structure with braided Kevlar (anti-ballistic fiber) between the sheaths to prevent twisting, bulging, and deformation.
Durable Outer Sheath: Utilizes imported PUR (polyurethane) material with high strength and wear resistance to protect the cable from crushing and dragging, extending its lifespan.
Global Tech, Local Value: Supported by cable technologies from Germany, France, and Italy. Manufactured by a direct domestic source, offering high cost-effectiveness.
Customization: Tailor-made designs available based on the customer’s actual working conditions.
Fast Delivery: Short production cycles and rapid shipping.

FAQ

Q: Is Derul Cable the original manufacturer?

A: Derul Cable is a special cable manufacturer. Our factory is based in Shanghai.

Q: Is the price negotiable?

A: Yes, the price is negotiable. Our price is also flexible due to several factors including purchase quantity.

Q: What is the regular MOQ for your cable?

A: Any quantity is okay to purchase for product at stock. For product with no stock, its MOQ is usually 100-200 meters per type.

Q: How can I get sample?

A: Usually you only need to pay the express freight, and after your confirmation of the product dimension and structure, we can arrange the sample and send it directly to you.

Q: Is OEM or ODM service available?

A: OEM and ODM services are both available. You can provide us with your requirement for the product and we will evaluate it to push forward.

Q: What is the regular production time?

A: For regular quantity, it usually costs about 15-25 days to produce.
